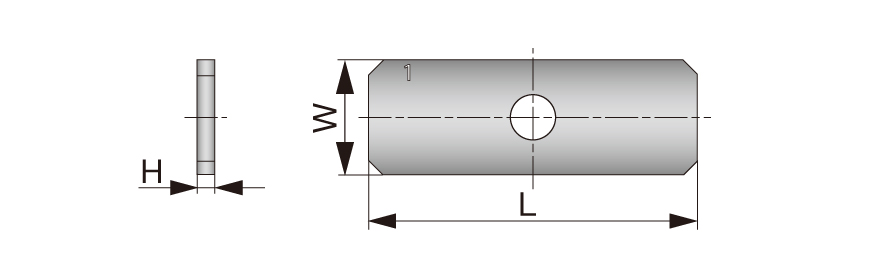

| Thickness (H) | 0.00039 - 0.00197″ | Cutting Diameter Maximum (DCX) | 0.7086″ |
| Overall Length (OAL) | 0.709″ | Application | | Accessories | BTA system | General Drilling | Gundrill | |
| Width (W) | 0.197″ | Measurement Type | Inch |
| Cutting Diameter Minimum (DCN) | 0.5512″ | Body Material | Steel |
Product Features
| Family Description | Diameter adjusting shim set. Adjusting range: 0.00039 - 0.00394. | Country of Origin | Japan |
Shipping Info
Package Weight
0.5
Related Documentation

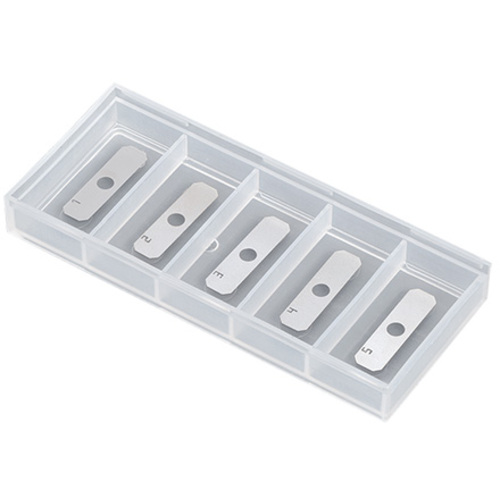

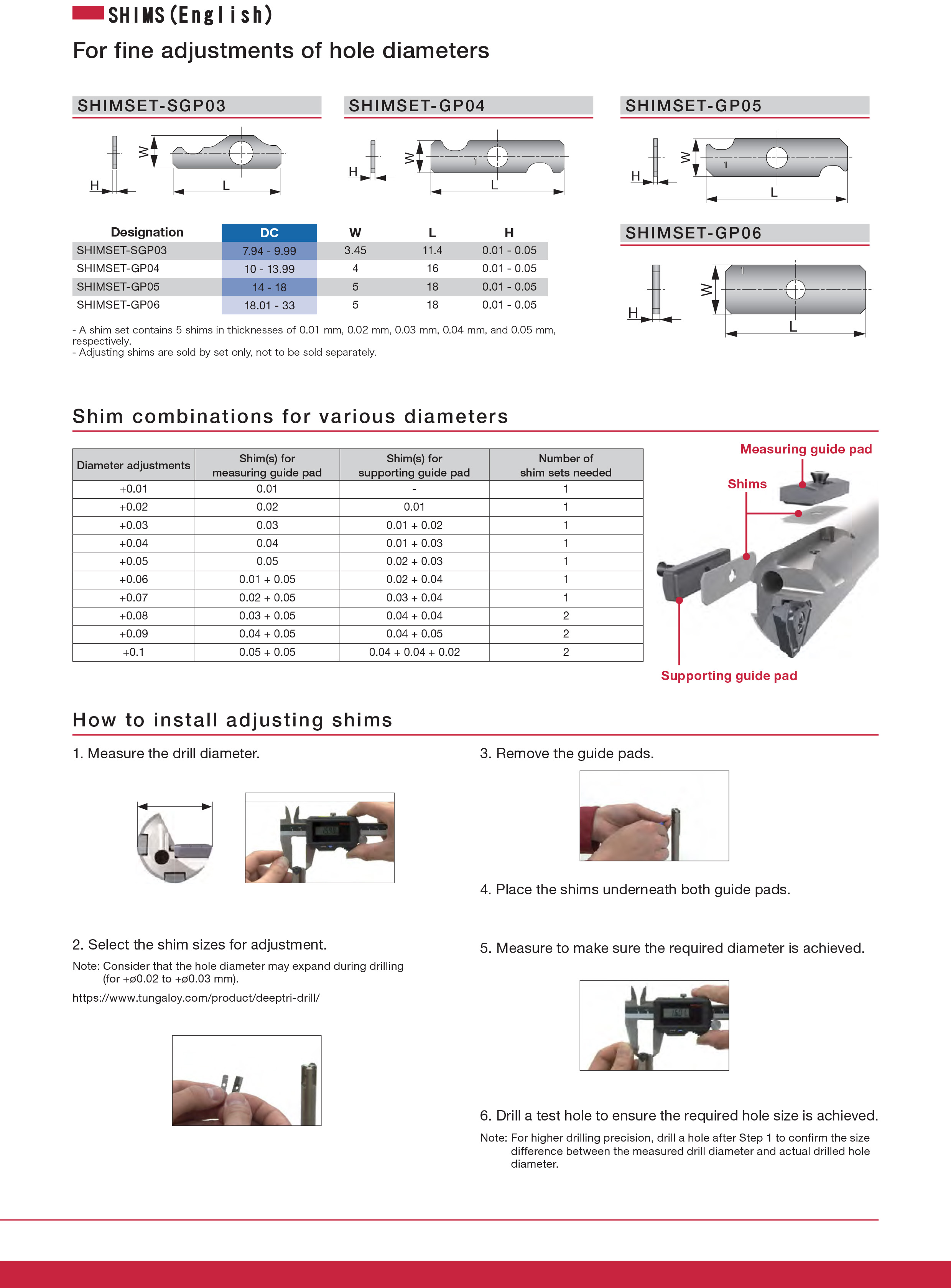

The shim set contains 5 shims in thicknesses of 0.01 mm, 0.02 mm, 0.03 mm, 0.04 mm, and 0.05 mm, respectively. @Follow the link below for a step-by-step visual instruction on how to install adjusting shims: @https://youtu.be/QYvBuDkQCH8
