ASV05N200-E8

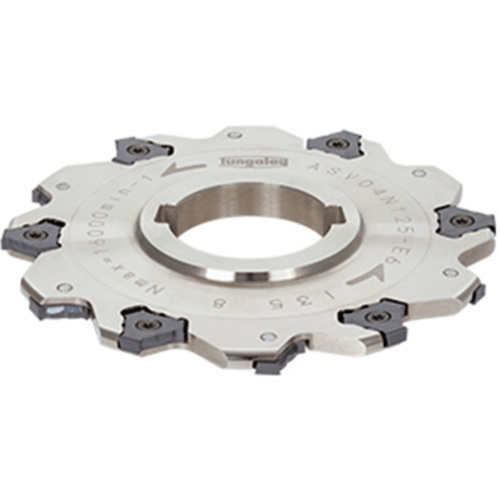

Axial drive type slot milling cutter with tangentially mounted inserts

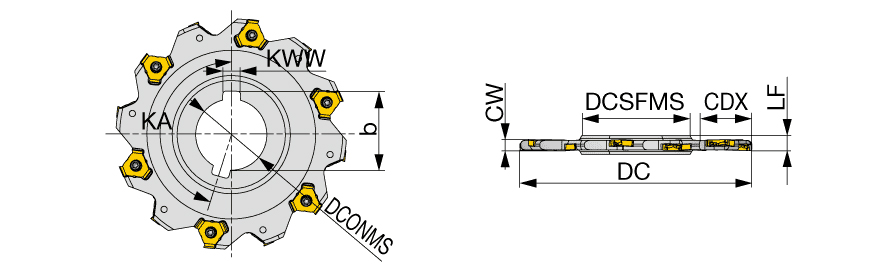

| Cutting Diameter (DC) | 200 mm | Overall Length (OAL) | 12 mm |
| Cutting Item Count (CICT) | 20 | Master Insert Identification (MIID) | TVKX0504** |
| Peripheral Effective Cutting Edge Count (ZEFP) | 10 | Application | | Slot Milling | |
| Cutting Depth Maximum (CDX) | 63 mm | Tool Type | Double-sided slotting cutters |
| Connection Diameter Machine Side (DCONMS) | 50 mm | Measurement Type | Metric |
| Hub Thickness (THUB) | 12 mm | Body Material | Steel |
| Cutting Width (CW) | 8 mm |
Product Features
| Family Description | Axial drive type slot milling cutter with tangentially mounted inserts | Country of Origin | JAPAN |
Shipping Info
Package Weight
4.850
