ASN15R200M50.0E25-07
Axial drive type Slot milling cutter with tangentially mounted inserts
Additional Canadian Tariff of 25 %

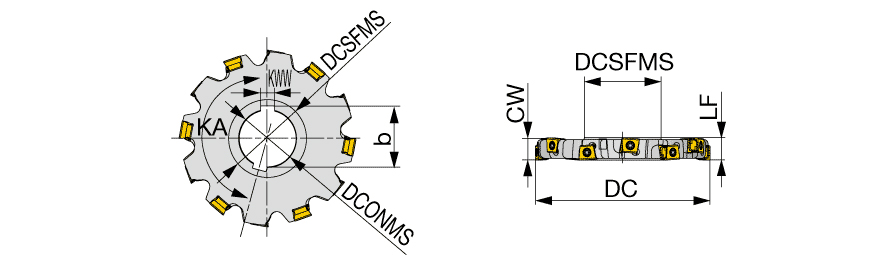

| Cutting Diameter (DC) | 200 mm | Overall Length (OAL) | 25 mm |
| Cutting Item Count (CICT) | 14 | Master Insert Identification (MIID) | LMEU1509... |
| Peripheral Effective Cutting Edge Count (ZEFP) | 7 | Application | | Slot Milling | |
| Cutting Depth Maximum (CDX) | 64.5 mm | Tool Type | Double-sided slotting cutters |
| Connection Diameter Machine Side (DCONMS) | 50 mm | Measurement Type | Metric |
| Hub Thickness (THUB) | 25 mm | Body Material | Steel |
| Cutting Width (CW) | 25 mm |
Product Features
| Family Description | Axial drive type Slot milling cutter with tangentially mounted inserts | Country of Origin | USA |
Shipping Info
Package Weight
10.450
