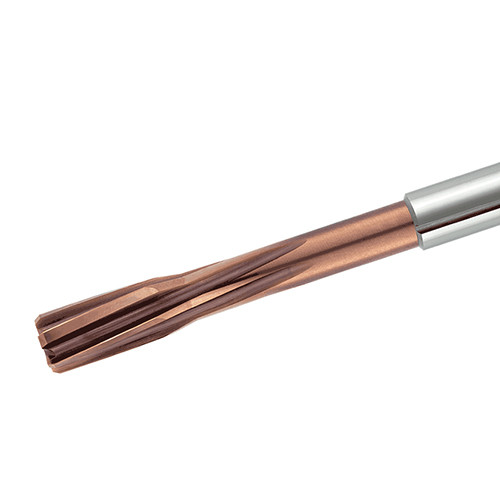

RM-MTR-0200-H7N-CS-C EVO
Chucking Reamer; 2 mm Dia. × 4 mm Shank Dia. × 50 mm OAL ; 4 FL ; evotec for reamers UOP

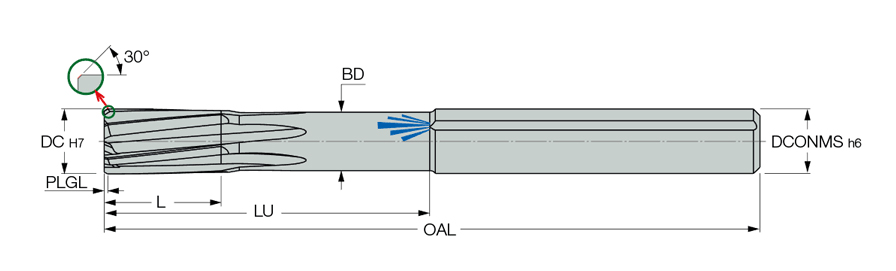

| Cutting Diameter (DC) | 2 mm | Overall Length (OAL) | 50 mm |
| Application | | Stacked Plates | Through & Axial Groove | Through & Perpendicular Holes | Through & Radial Groove | Through Hole | | Grade | EVO |
| Usable Length (LU) | 21 mm | Coolant Supply Property (CSP) | External |
| Cutting Edge Length (L) | 9 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 4 mm | Body Material | Carbide |
| Flute Count (NOF) | 4 | Body Diameter (BD) | 1.5 mm |
Product Features
| Family Description | MTR UOP, Helical flute PVD coated solid carbide reamers with cylindrical shank and coolant grooves for high speed reaming. Unequal pitch for chatter dampening | Country of Origin | Italy |
| Remarks | EVO is a hard submicron IC07 carbide substrate with an ultra-thin silicon based PVD coating, obtained by High Density Plasma (HDP) technology. Hole tolerance: H7 manufacturing tolerance according to DIN 1420 For machining recommendations, click on More Info |
Shipping Info
Package Weight
0.022
