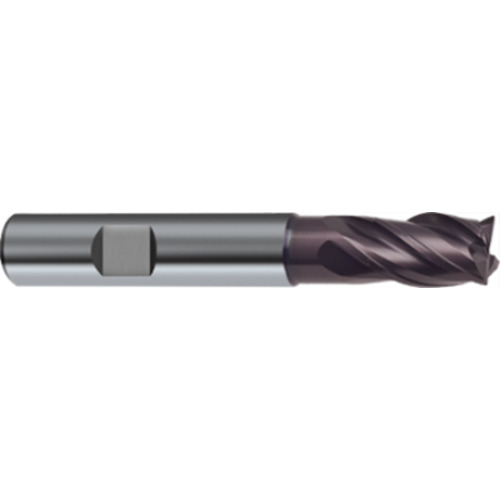

18mm Dia. × 84mm, OAL 4 Flute Variable Helix Firex Carbide End Mill
SQ End Mill; 18 mm Dia. × 24 mm LOC × 18 mm Shank Dia. × 84 mm OAL ; 4 FL ; Carbide ; TiAlN
Additional Tariff Surcharge of 6.6 %
| Cutting Diameter (DC) | 18 mm | Flute Helix Angle (FHA) | 35 Degrees | 38 Degrees |
| Connection Diameter Machine Side (DCONMS) | 18 mm | Shank Type | Weldon |
| Depth of Cut Maximum (APMX) | 24 mm | Corner Chamfer Width (CHW) | 0.4 mm |
| Overall Length (OAL) | 84 mm | Neck Diameter (DN) | 17.5 mm |
| Cutting Edge Material | Carbide | Neck Length (LN) | 34 mm |
| Coating | TiAlN | Tool Type | Alloyed Steels and Cast Iron |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | External |
Product Features
| Family Description | 9037310180000 18MM 4FL CBD EM | Country of Origin | Germany |
Shipping Info
Package Weight
1.324
