MT TIH 905 I 18 UN AC22

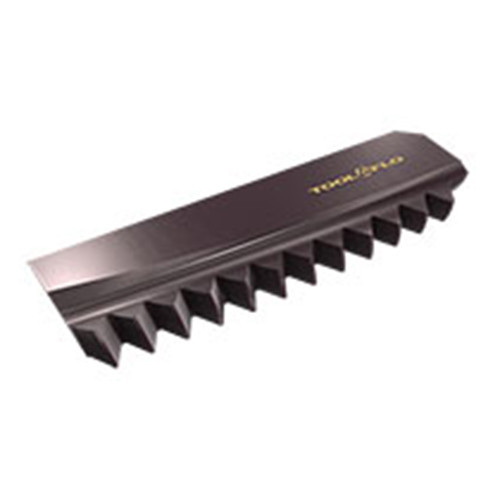

Helical Thread Milling Inserts for American Full Profile Internal Threads for General Applications

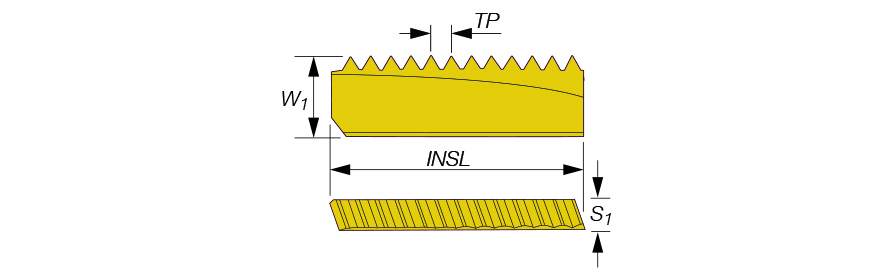

| Thread Pitch (TP) | 1.411 mm | Grade | AC22 |
| Threads per Inch (TPI) | 18 | Shape | 90° Rectangular |
| Insert Length (INSL) | 1.063″ | Cutting Edge Material | Carbide |
| Insert Width (W1) | 0.315″ | Coating | TiAlN |
| Insert Thickness Total (S1) | 0.138″ | Measurement Type | Inch |
| Thread Designation Inside (THID) | 1-1/16″ | Body Material | Carbide |
| Application | | Internal Thread Milling | Threading Inserts | | Thread Form Type (THFT) | UN60 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
Product Features
| Family Description | Helical Thread Milling Inserts for American Full Profile Internal Threads for General Applications | Country of Origin | Israel |
