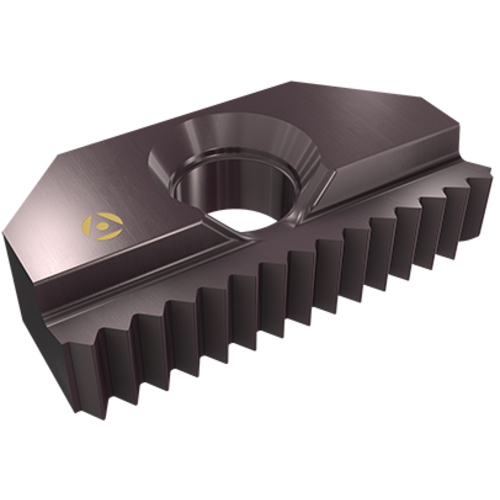

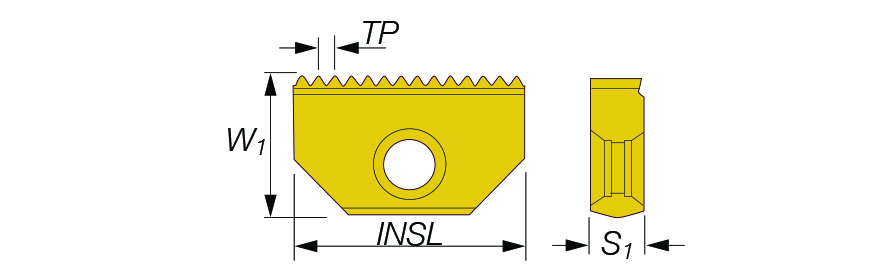

MT TISC 472 I28UN AC22
| Thread Pitch (TP) | 0.907 mm | Grade | AC22 |
| Threads per Inch (TPI) | 28 | Shape | Rectangle |
| Insert Length (INSL) | 0.472″ | Cutting Edge Material | Carbide |
| Insert Width (W1) | 0.256″ | Coating | TiAlN |
| Insert Thickness Total (S1) | 0.114″ | Measurement Type | Inch |
| Cutting Position | Internal | Body Material | Carbide |
| Application | | Internal Thread Milling | Threading Inserts | | Thread Form Type (THFT) | UN60 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
Product Features
| Family Description | Thread Milling Inserts for American (UN, UNC, UNF, UNEF, UNS) Full Profile Threads for General Applications | Country of Origin | Israel |
Shipping Info
Package Weight
0.013
