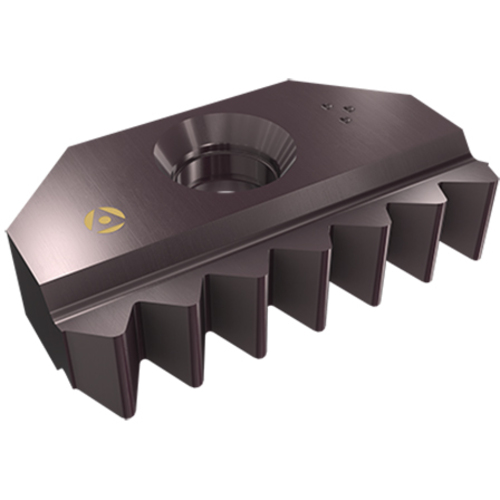

MT TIDC 826 E2.50ISO AC22

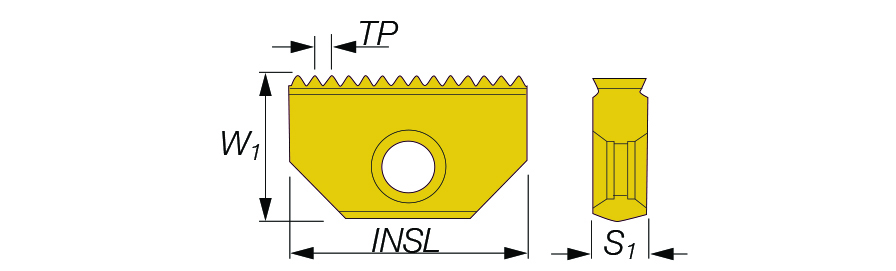

| Thread Pitch (TP) | 2.5 mm | Grade | AC22 |
| Insert Length (INSL) | 0.827″ | Shape | Rectangle |
| Insert Width (W1) | 0.504″ | Cutting Edge Material | Carbide |
| Insert Thickness Total (S1) | 0.189″ | Coating | TiAlN |
| Cutting Position | External | Measurement Type | Inch |
| Application | | External Thread Milling | Threading Inserts | | Body Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Thread Form Type (THFT) | M60 |
Product Features
| Family Description | Thread Milling Inserts for External ISO Metric Profile | Country of Origin | Israel |
Shipping Info
Package Weight
0.037
