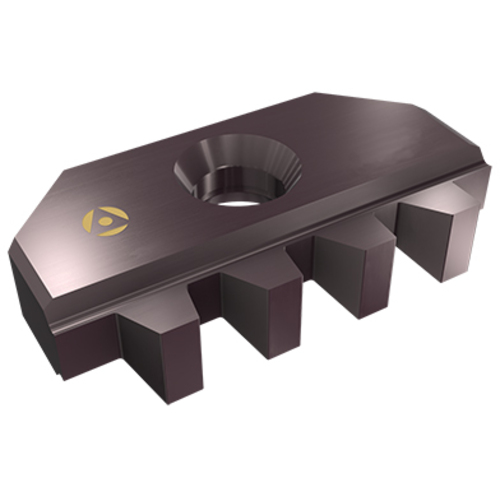

MT TIDC 1181 I4ACME AC22

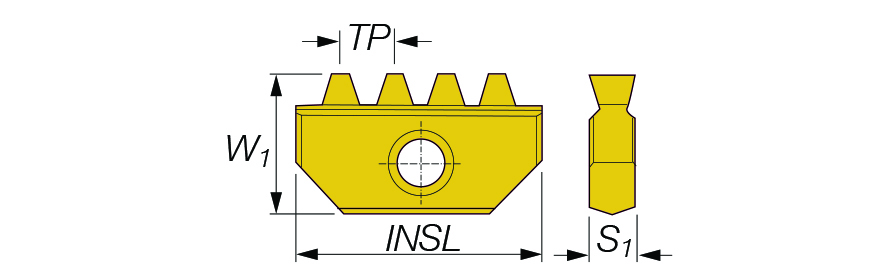

| Thread Pitch (TP) | 6.35 mm | Grade | AC22 |
| Threads per Inch (TPI) | 4 | Shape | Rectangle |
| Insert Length (INSL) | 1.181″ | Cutting Edge Material | Carbide |
| Insert Width (W1) | 0.657″ | Coating | TiAlN |
| Insert Thickness Total (S1) | 0.22″ | Measurement Type | Inch |
| Cutting Position | Internal | Body Material | Carbide |
| Application | | Internal Thread Milling | Threading Inserts | | Thread Form Type (THFT) | AC29 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
Product Features
| Family Description | Internal Double-Sided ACME (ASME/ANSI B1.5-1988 Class 3G) Profile Thread Milling Inserts for Feed Screws | Country of Origin | Israel |
Shipping Info
Package Weight
0.077
