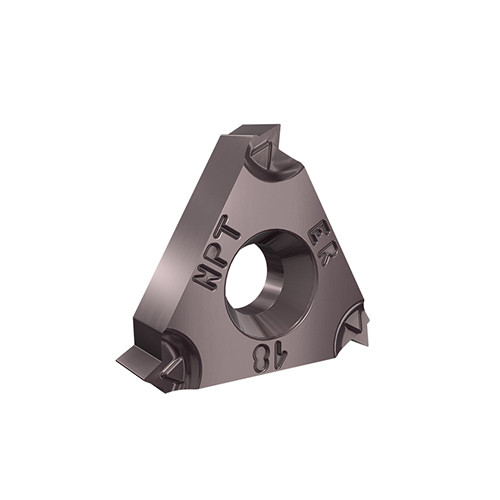

16ER 11.5NPT GP50A
External Right Hand NPT (National Pipe Threads) Full ProfileLaydown Threading Inserts for Steam, Gas and Water Pipes
| Inscribed Circle Diameter (IC) | 3/8″ | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 0.649″ | Shape | 60° Triangle |
| Threads per Inch (TPI) | 11.5 | Cutting Item Count (CICT) | 1 |
| Corner Radius (RE) | 0.0035″ | Threads per Inch Minimum (TPIN) | 11.5 |
| Grade | GP50A | Threads per Inch Maximum (TPIX) | 11.5 |
| Coating | TiN | Tool Type | Threading Regular Inserts |
| Cutting Edge Material | Carbide | Cutting Depth Maximum (CDX) | 0.63″ |
| Application | | External Thread Milling | External Threading | Threading Inserts | | Measurement Type | Inch |
| Applicable Material | | Steel | Stainless Steel | | Body Material | Carbide |
| Insert Style | Laydown (LT) | Thread Form Type (THFT) | NPT60 |
Product Features
| Family Description | External Right Hand NPT (National Pipe Threads) Full ProfileLaydown Threading Inserts for Steam, Gas and Water Pipes | Country of Origin | Israel |
Shipping Info
Package Weight
0.000
