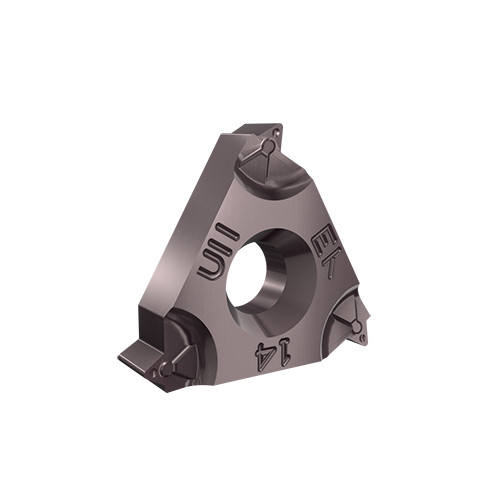

27ER 4UN GP50A
Laydown Threading Insert ; 4 Threads/" TPI ; 60 Triangle Shape ; 1.063″ Length ; 5/8″ IC ; Carbide ; GP50A ; TiN
| Inscribed Circle Diameter (IC) | 5/8″ | Insert Style | Laydown (LT) |
| Insert Length (INSL) | 1.063″ | Cutting Direction (HAND) | Right Hand |
| Threads per Inch (TPI) | 4 | Shape | 60° Triangle |
| Corner Radius (RE) | 0.0335″ | Cutting Item Count (CICT) | 1 |
| Grade | GP50A | Tool Type | Threading Regular Inserts |
| Coating | TiN | Cutting Depth Maximum (CDX) | 1.063″ |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Application | | External Thread Milling | External Threading | Threading Inserts | | Body Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | | Thread Form Type (THFT) | UN60 |
Product Features
| Family Description | External Right Hand American UN Full Profile (UN, UNC, UNF, UNEF) Laydown Threading Inserts for General Industries | Country of Origin | Israel |
Shipping Info
Package Weight
0.000
