22IR 2.00ISO 3M AC22A

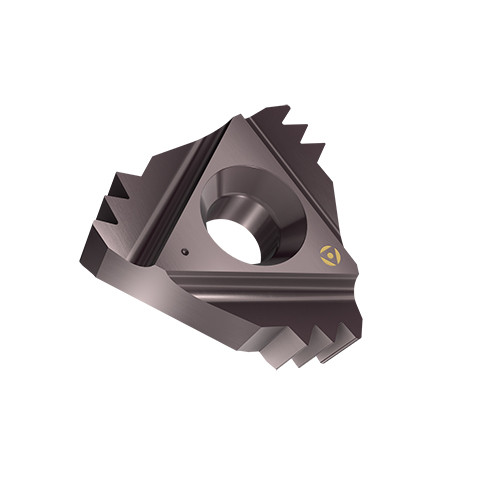

Laydown Threading Insert ; 2 mm TP ; 0.866″ Length ; 1/2″ IC ; Carbide ; AC22A ; TiN, TiAlCrN
| Inscribed Circle Diameter (IC) | 1/2″ | Insert Style | Laydown (LT) |
| Insert Length (INSL) | 0.866″ | Cutting Direction (HAND) | Right Hand |
| Thread Pitch (TP) | 2 mm | Tool Type | Threading Regular Inserts |
| Corner Radius (RE) | 0.0051″ | Measurement Type | Inch |
| Grade | AC22A | Body Material | Carbide |
| Coating | TiAlN | Number of Teeth | 1 |
| Cutting Edge Material | Carbide | Thread Form Type (THFT) | M60 |
| Application | | Internal Thread Milling | Internal Threading lay down | Threading Inserts | | Profile Distance EY (PDY) | 0.122″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
Product Features
| Family Description | Internal Right Hand ISO Metric (DIN13 12-1986 class 6H) 3-Tooth Laydown Threading Inserts for General Industries | Country of Origin | Israel |
Shipping Info
Package Weight
0.000
