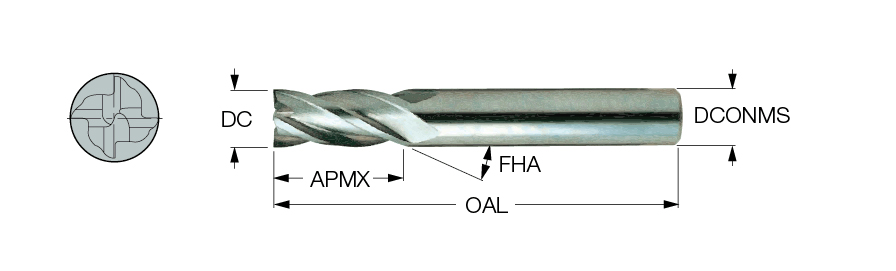

EC-A4 035-12C035E32 IC08
| Cutting Diameter (DC) | 3.5 mm | Applicable Material | Non-Ferrous Metals| |
| Connection Diameter Machine Side (DCONMS) | 3-1/2 mm | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Depth of Cut Maximum (APMX) | 12 mm | Grade | IC08 |
| Overall Length (OAL) | 32 mm | Tool Type | Solid Carbide Center Cutting Endmills 90 Degrees |
| Cutting Edge Material | Carbide | Maximum Feed per Tooth (fz(max)) | 0.04 mm/tooth |
| Coating | Uncoated | Length Group | Medium |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.035″ |
| Flute Helix Angle (FHA) | 30 Degrees | Measurement Type | Metric |
| Shank Type | Round |
Product Features
| Family Description | Economical type 4 flute, 30° helix, center cutting, medium length solid carbide endmills. | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.011
