ECC020B07-2C03 IC300
SQ End Mill; 2 mm Dia. × 7 mm LOC × 3 mm Shank Dia. × 38 mm OAL ; 2 FL ; Carbide ; TiCN

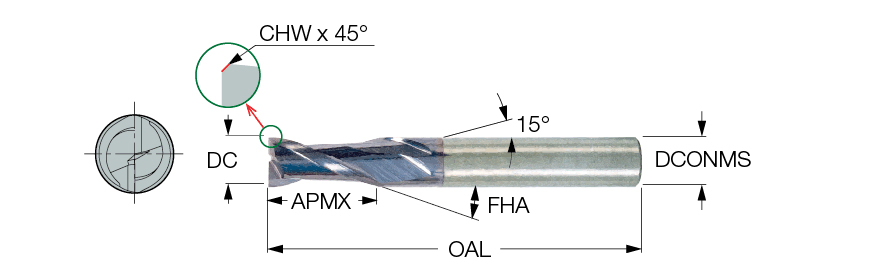

| Cutting Diameter (DC) | 2 mm | Applicable Material | Stainless Steel | Super-Alloys / Titanium |
| Connection Diameter Machine Side (DCONMS) | 3 mm | Corner Chamfer Width (CHW) | 0.1 mm |
| Depth of Cut Maximum (APMX) | 7 mm | Grade | IC300 |
| Overall Length (OAL) | 38 mm | Tool Type | Solid Carbide Center Cutting Endmills 90 Degrees |
| Cutting Edge Material | Carbide | Maximum Feed per Tooth (fz(max)) | 0.03 mm/tooth |
| Coating | TiCN | Length Group | Medium |
| Flute Count (NOF) | 2 | Decimal Equivalent | 0.035″ |
| Flute Helix Angle (FHA) | 30 Degrees | Measurement Type | Metric |
| Shank Type | Round |
Product Features
| Family Description | 2 flute, 30° helix medium length solid carbide slot / drill endmills with chamfered corners. | Country of Origin | Israel |
Shipping Info
Package Weight
0.011
