15B1H-15015X8R01

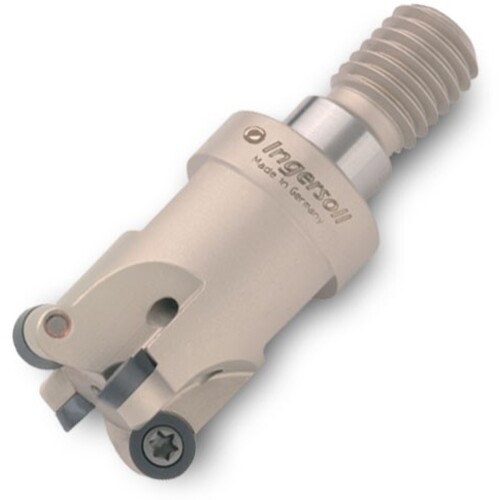

Indexable End Mill; 1-1/2″ Dia. × 13 mm LOC × 32 mm Shank Dia. × 130 mm OAL ; 4 FL ; - Shank ; 90 Degrees
| Cutting Diameter (DC/DCX) | 1-1/2″ | Head Length (LH) | 30 mm |
| Cutting Diameter (DC) | 40 mm | Functional Length (LF) | 1-1/2″ |
| Cutting Item Count (CICT) | 3 | Tool Type | 90° indexable endmills |
| Depth of Cut Maximum (APMX) | 13 mm | Flute Count (NOF) | 4 |
| Overall Length (OAL) | 130 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | - | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Ramping Angle Maximum (RMPX) | 5 | Cutting Direction (HAND) | Right Hand |
| Application | Int. 35ֲ° Diamo 95ֲ° Back Approa | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Body Material | Steel |
| Master Insert Identification (MIID) | 0.47mm | Connection Code Machine Side (CCMS) | Cylindrical |
| Weight of Item (WT) | 0.73 Kg | Cutting Diameter Maximum (DCX) | 1-1/2″ |
Product Features
| Family Description | Button I.C.: 6, 8, 10, 12, & 16 mm Inch & metric cutter bodies | Country of Origin | Germany |
Shipping Info
Package Weight
0.57
