16W7J-2004082R02

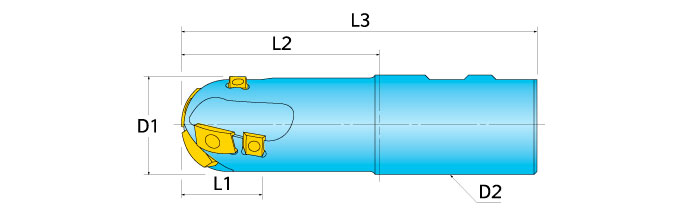

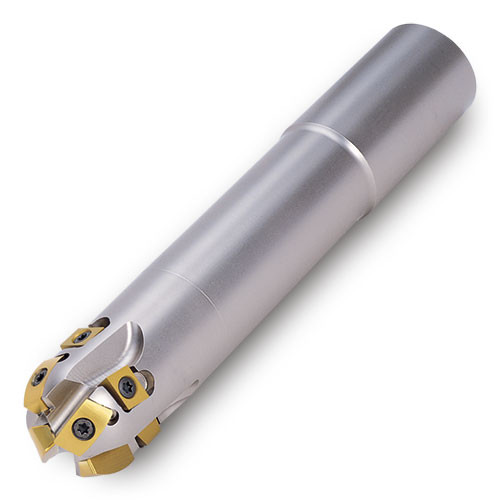

Indexable End Mill; 2″ Dia. × 1.62″ LOC × 2″ Shank Dia. × 7-1/4″ OAL
| Cutting Diameter (DC/DCX) | 2″ | Weight of Item (WT) | 0.73 Kg |
| Cutting Diameter (DC) | 2″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 4 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 1.62″ | Measurement Type | Inch |
| Overall Length (OAL) | 7-1/4″ | Body Material | Steel |
| Application | | Helical Interpolation | Rampdown | Slotting | | Protruding Length (LPR) | 4″ |
| Connection Diameter Machine Side (DCONMS) | 2″ | Connection Code Machine Side (CCMS) | Cylindrical |
Product Features
| Family Description | Cutting edge length: 1.06″ to 3.65″ | Country of Origin | Usa |
