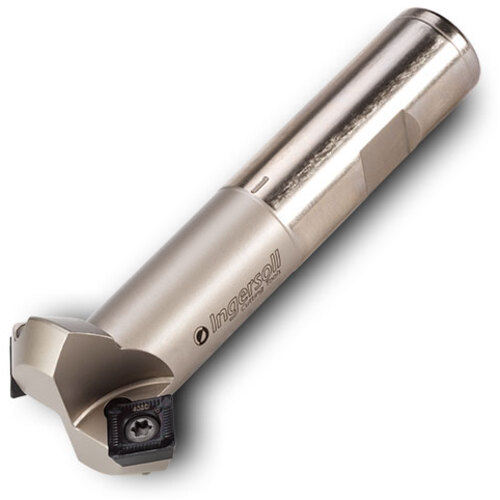

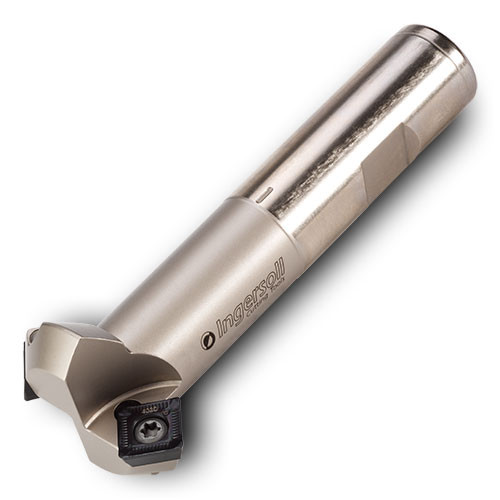

15N1G-1502084R01
Indexable End Mill; 1-1/2″ Dia. × 0.27″ LOC × 3/4″ Shank Dia. × 4″ OAL ; 45 Degrees
| Cutting Diameter (DC/DCX) | 1-1/2″ | Tool Cutting Edge Angle (KAPR) | 45 Degrees |
| Cutting Diameter (DC) | 0.91″ | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 2 | Angle | 90 Degrees |
| Depth of Cut Maximum (APMX) | 0.27″ | Measurement Type | Inch |
| Overall Length (OAL) | 4″ | Body Material | Steel |
| Application | | Chamfering | Slanted Shoulder & Chamfer | | Protruding Length (LPR) | 2″ |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Weight of Item (WT) | 0.73 Kg | Cutting Diameter Maximum (DCX) | 1-1/2″ |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Family Description | Insert with 4 Indexes | Country of Origin | USA |
Shipping Info
Package Weight
0.001
