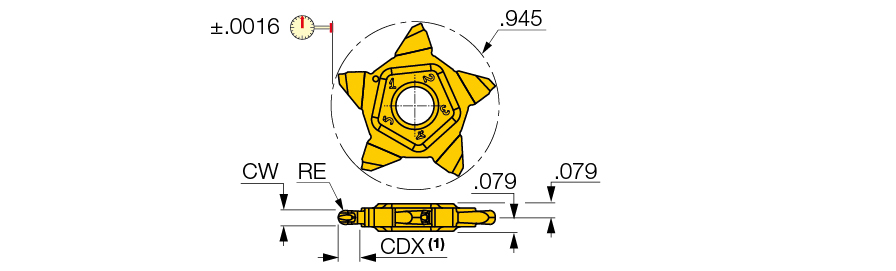

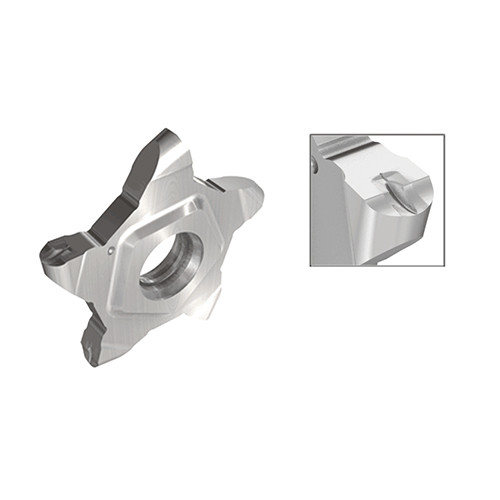

PENTA 24N400J200 IC908
Parting Off Insert; 0.157″ CW × 0.0787″ Corner Radius ; Carbide ; TiAlN ; IC908
| Cutting Width (CW) | 0.157″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.0787″ | Max. Grooving Feed (fg(max)) | 0.0079 ″/rev |
| Corner Radius Tolerance (+/-) (RETOL) | 0.002″ | Min. Grooving Feed (fg(min)) | 0.0024 ″/rev |
| Cutting Depth Maximum (CDX) | 0.246″ | Chip Breaker Type | J |
| Cutting Edge Material | Carbide | Tool Type | Parting & Grooving Inserts |
| Coating | TiAlN | Angle | 12 Degrees |
| Grade | IC908 | Measurement Type | Inch |
| Shape | 108° Pentagonal | Body Material | Carbide |
| Application | | Ext. Grooving | Ext. Grooving & Turning | | Cutting Width Tolerance (+/-) (CWTOL) | 0.00078″ |
Product Features
| Family Description | Precision grooving most economical inserts with 5 cutting edges for soft parts, minimize burr size. | Country of Origin | Israel |
| Remarks | Recessing is possible only with .094 and wider inserts. For parting and grooving range, click on More Info. |
Shipping Info
Package Weight
0.032
