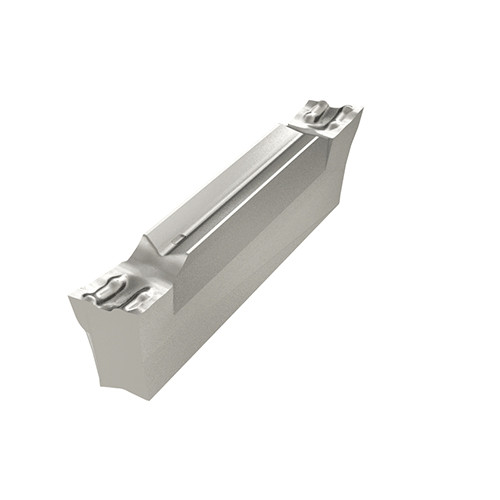

DGR 3000ZS-15D IC908
Parting Off Insert; 0.118″ CW × 0.803″ Length × 0.0008″ Corner Radius ; Right Hand ; Carbide ; TiAlN ; IC908

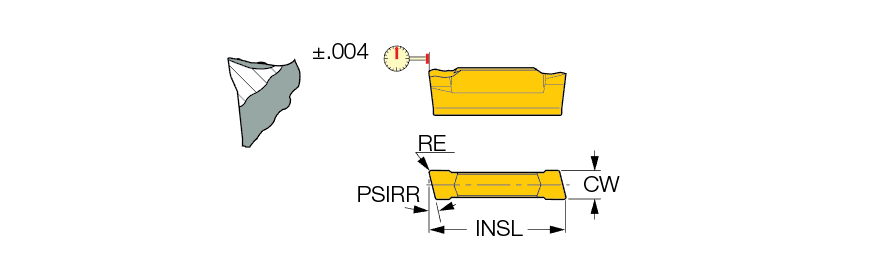

| Cutting Width (CW) | 0.118″ | Application | | Parting | |
| Corner Radius (RE) | 0.0008″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Overall Length (OAL) | 0.803″ | Max. Grooving Feed (fg(max)) | 0.0039 ″/rev |
| Insert Length (INSL) | 0.803″ | Min. Grooving Feed (fg(min)) | 0.0012 ″/rev |
| Cutting Depth Maximum (CDX) | 0.709″ | Tool Type | Parting & Grooving Inserts |
| Cutting Edge Material | Carbide | Angle | 12 Degrees |
| Coating | TiAlN | Measurement Type | Inch |
| Grade | IC908 | Body Material | Carbide |
| Shape | 90° Rectangular | Cutting Edge Angle Major Right Hand (PSIRR) | 15 Degrees |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Family Description | A chipformer for use at low feeds. Recommended for Cr-Ni alloys and low carbon steel, especially in the bearing industry and on similar, problematic materials. The tight chipformer ensures short, deformed chips. | Country of Origin | Israel |
Shipping Info
Package Weight
0.011
