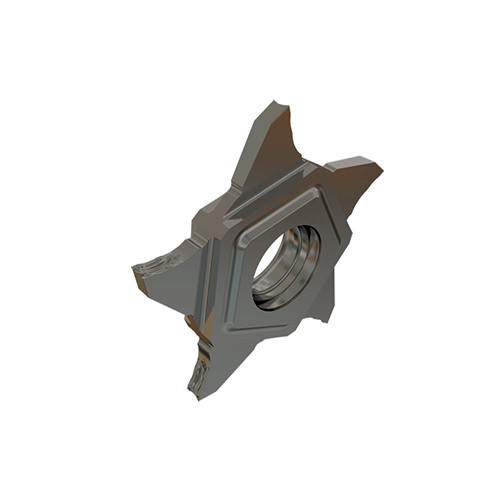

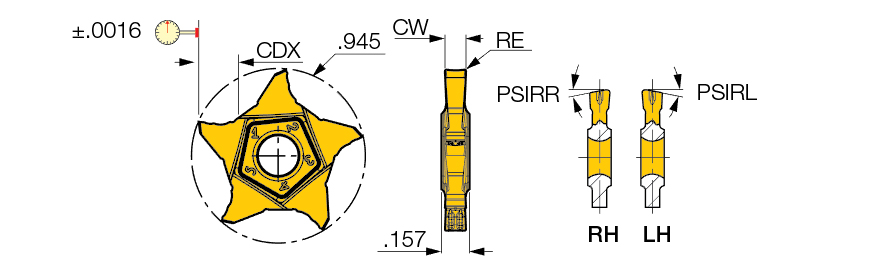

PENTA 24L300Z06D IC1008
Parting Off Insert; 0.118″ CW × 0.0079″ Corner Radius ; Left Hand ; Carbide ; TiAlN+TiN ; IC1008
| Cutting Width (CW) | 0.118″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.0079″ | Max. Grooving Feed (fg(max)) | 0.0051 ″/rev |
| Corner Radius Tolerance (+/-) (RETOL) | 0.0012″ | Min. Grooving Feed (fg(min)) | 0.0016 ″/rev |
| Cutting Depth Maximum (CDX) | 0.252″ | Chip Breaker Type | Z |
| Cutting Edge Material | Carbide | Tool Type | Parting & Grooving Inserts |
| Coating | TiAlN+TiN | Angle | 12 Degrees |
| Grade | IC1008 | Work Piece Parting Diameter Maximum (CUTDIA) | 0.504″ |
| Shape | 90° Rectangular | Measurement Type | Inch |
| Cutting Direction (HAND) | Left Hand | Body Material | Carbide |
| Application | | Parting | | Insert Width (W1) | 0.157″ |
Product Features
| Family Description | Parting insert for soft parts and bearing steel, high positive rake. Most economical system with 5 cutting edges. | Country of Origin | Israel |
| Remarks | Cutting edge with high positive rake, suitable for parting tubes, thin walled parts and for small diameters Suitable for machining soft materials and bearing steel at low to medium feeds For parting and grooving range, click on More Info |
Shipping Info
Package Weight
0.025
