TAG N3MF IC5400

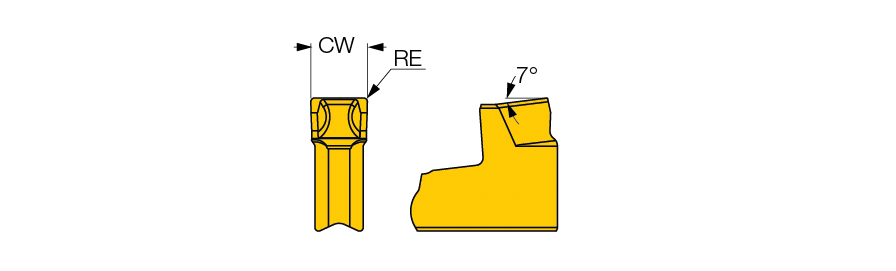

Parting Off Insert; 0.12″ CW × 0.008″ Corner Radius ; Neutral ; Carbide ; TiCN+Al2O3+TiN ; IC5400
| Cutting Width (CW) | 0.12″ | Applicable Material | | Steel | Stainless Steel | |
| Corner Radius (RE) | 0.008″ | Max. Grooving Feed (fg(max)) | 0.0071 ″/rev |
| Corner Radius Tolerance (+/-) (RETOL) | 0.0012″ | Min. Grooving Feed (fg(min)) | 0.0024 ″/rev |
| Cutting Edge Material | Carbide | Chip Breaker Type | MF |
| Coating | TiCN+Al2O3+TiN | Tool Type | Groove-Turn Utility Inserts |
| Grade | IC5400 | Angle | 12 Degrees |
| Shape | 90° Rectangular | Measurement Type | Inch |
| Cutting Direction (HAND) | Neutral | Body Material | Carbide |
| Application | | Ext. Grooving | Parting | Side Slotting | Slitting | T Slotting | Y Axis Parting & grooving | | Cutting Width Tolerance (+/-) (CWTOL) | 0.00196″ |
Product Features
| Family Description | Basic design of the "C" chipformer with higher deflector and smaller T-land, most suitable in grade IC5400 for general stainless steel applications for medium to high feeds. Suitable also for high alloy steel. | Country of Origin | Israel |
Shipping Info
Package Weight
0.004
