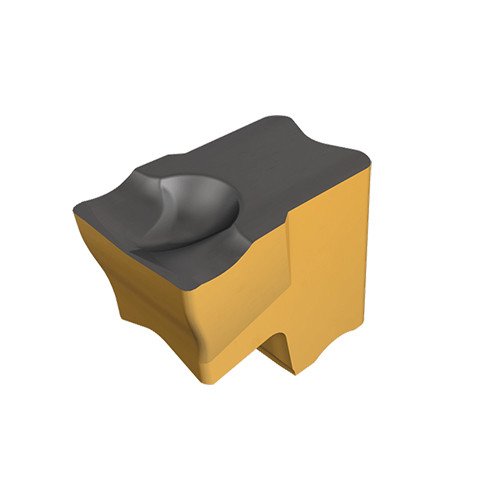

TAG N2J IC5400
Parting Off Insert; 0.079″ CW × 0.0079″ Corner Radius ; Neutral ; Carbide ; TiCN+Al2O3+TiN ; IC5400
| Cutting Width (CW) | 0.079″ | Max. Grooving Feed (fg(max)) | 0.0047 ″/rev |
| Corner Radius (RE) | 0.0079″ | Min. Grooving Feed (fg(min)) | 0.0016 ″/rev |
| Corner Radius Tolerance (+/-) (RETOL) | 0.0016″ | Insert Rake Angle (GAN) | 5 Degrees |
| Cutting Edge Material | Carbide | Chip Breaker Type | J |
| Coating | TiCN+Al2O3+TiN | Tool Type | Parting & Grooving Inserts |
| Grade | IC5400 | Angle | 12 Degrees |
| Shape | 90° Rectangular | Measurement Type | Inch |
| Cutting Direction (HAND) | Neutral | Body Material | Carbide |
| Application | | Ext. Grooving | Parting | Side Slotting | Slitting | T Slotting | Y Axis Parting & grooving | | Cutting Width Tolerance (+/-) (CWTOL) | 0.00157″ |
| Applicable Material | | Steel | Stainless Steel | |
Product Features

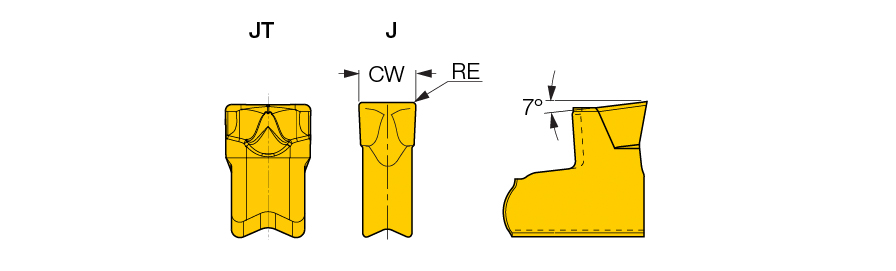

| Family Description | First choice for soft materials, alloy steel and austenitic stainless steel. Parting of tubes, small diameters and thin-walled parts. Cutting edge with positive rake used at low-to-medium feeds. The JS-type has sharp corners. | Country of Origin | Israel |
| Remarks | JT chipformer has the basic positive configuration of the J-type and a reinforced negative front edge; most suitable for soft materials at low-to-medium feeds. |
Shipping Info
Package Weight
0.005
