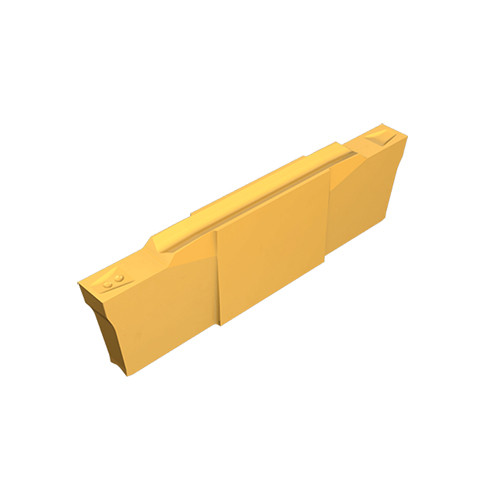

DGN 2400WP IC328
Parting Off Insert; 0.094″ CW × 0.803″ Length × 0.002″ Corner Radius ; Neutral ; Carbide ; TiCN ; IC328
| Cutting Width (CW) | 0.094″ | Cutting Direction (HAND) | Neutral |
| Corner Radius (RE) | 0.002″ | Application | | Ext. Grooving | Parting | |
| Corner Radius Tolerance (+/-) (RETOL) | 0.0008″ | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Overall Length (OAL) | 0.803″ | Max. Grooving Feed (fg(max)) | 0.0055 ″/rev |
| Insert Length (INSL) | 0.803″ | Min. Grooving Feed (fg(min)) | 0.002 ″/rev |
| Cutting Depth Maximum (CDX) | 0.236″ | Tool Type | Parting & Grooving Inserts |
| Cutting Edge Material | Carbide | Angle | 12 Degrees |
| Coating | TiCN | Measurement Type | Inch |
| Grade | IC328 | Body Material | Carbide |
| Shape | 90° Rectangular | Cutting Width Tolerance (+/-) (CWTOL) | 0.00078″ |
Product Features

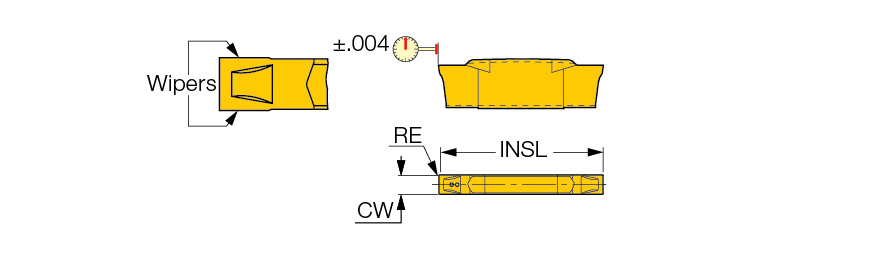

| Family Description | Parallel wiper design for improved flatness and surface finish. Low cutting forces. Used at low-to-medium feeds. Apply cutting oil for best results. Replaces existing HSS blades. | Country of Origin | Israel |
Shipping Info
Package Weight
0.008
