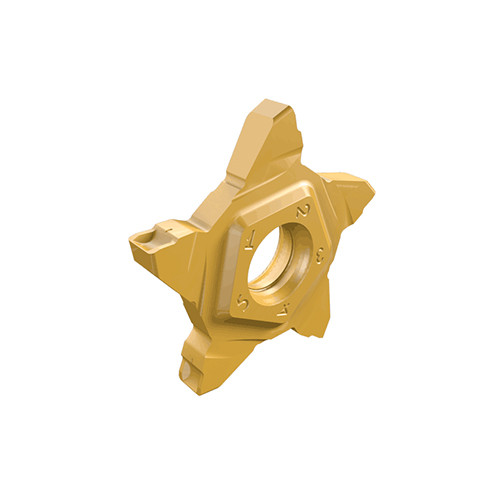

PENTA 24N318C020 IC908
Parting Off Insert; 1/8″ CW × 0.0079″ Corner Radius ; Neutral ; Carbide ; TiAlN ; IC908

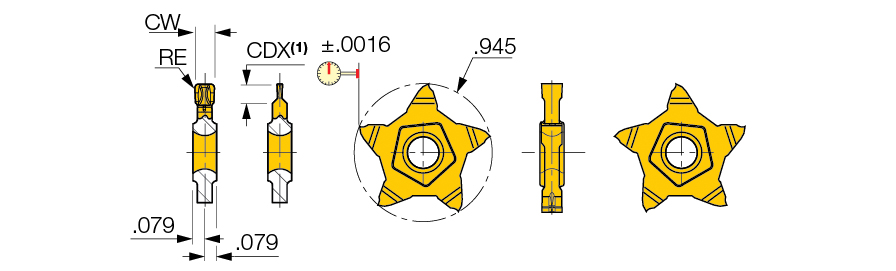

| Cutting Width (CW) | 1/8″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.0079″ | Max. Grooving Feed (fg(max)) | 0.0079 ″/rev |
| Corner Radius Tolerance (+/-) (RETOL) | 0.002″ | Min. Grooving Feed (fg(min)) | 0.0039 ″/rev |
| Cutting Depth Maximum (CDX) | 0.244″ | Chip Breaker Type | C |
| Cutting Edge Material | Carbide | Tool Type | Parting & Grooving Inserts |
| Coating | TiAlN | Angle | 12 Degrees |
| Grade | IC908 | Measurement Type | Inch |
| Shape | 108° Pentagonal | Body Material | Carbide |
| Cutting Direction (HAND) | Neutral | Cutting Width Tolerance (+/-) (CWTOL) | 0.00078″ |
| Application | | Ext. Grooving | Ext. Grooving & Turning | Parting | | Insert Width (W1) | 0.157″ |
Product Features
| Family Description | Parting and precision grooving insert with 5 cutting edges. First choice for the parting of bars, hard materials and tough applications. A positive rake, single cavity, negative land and shoulders, provides extra cutting-edge strength. | Country of Origin | Israel |

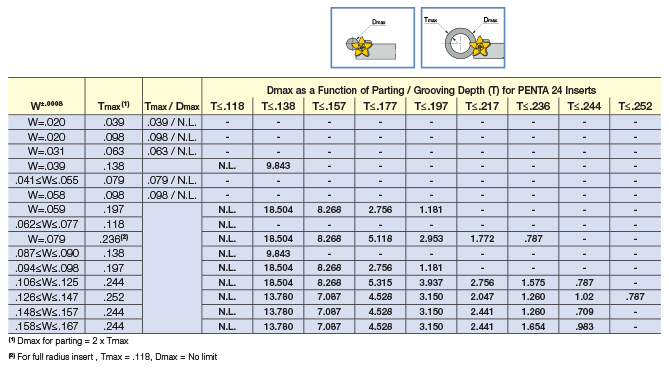

| Remarks | Recessing is possible only with .094 and wider inserts For parting and grooving range, click on More Info. |
Shipping Info
Package Weight
0.026
