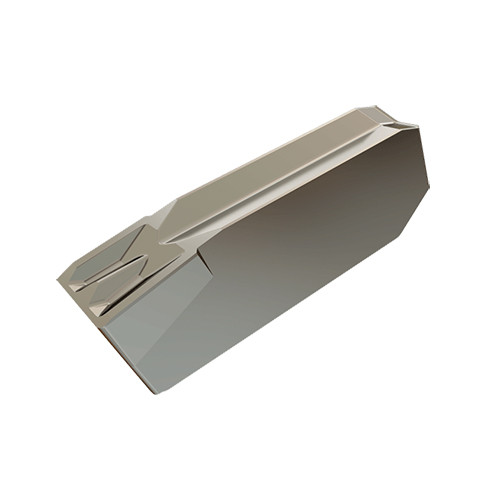

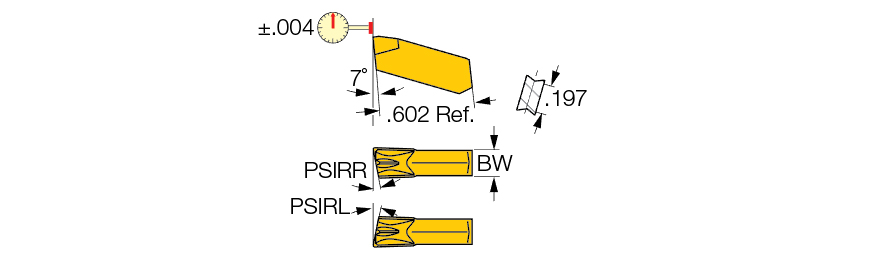

GIM 4-4RA IC354
Parting Off Insert; 0.157″ CW × 0.602″ Length × 0.0098″ Corner Radius ; Right Hand ; Carbide ; TiCN ; IC354
| Cutting Width (CW) | 0.157″ | Max. Grooving Feed (fg(max)) | 0.0063 ″/rev |
| Corner Radius (RE) | 0.0098″ | Min. Grooving Feed (fg(min)) | 0.0039 ″/rev |
| Overall Length (OAL) | 0.602″ | Chip Breaker Type | W |
| Insert Length (INSL) | 0.602″ | Tool Type | Parting & Grooving Inserts |
| Cutting Edge Material | Carbide | Angle | 12 Degrees |
| Coating | TiCN | Measurement Type | Inch |
| Grade | IC354 | Body Material | Carbide |
| Shape | 90° Rectangular | Cutting Edge Angle Major Right Hand (PSIRR) | 4 Degrees |
| Cutting Direction (HAND) | Right Hand | Cutting Width Tolerance (+/-) (CWTOL) | 0.00196″ |
| Application | | Parting | Slitting | | Insert Width (W1) | 0.126″ |
| Applicable Material | | Steel | Stainless Steel | |
Product Features
| Family Description | Parting, single-sided insert. W-type chipformer, with a central ridge that forms double cavities on the rake face. Most efficient on alloy steel. | Country of Origin | Israel |
Shipping Info
Package Weight
0.012
