DGN 3002MF IC5400

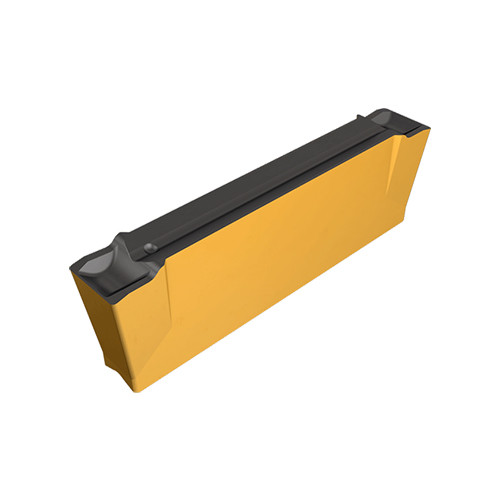

Parting Off Insert; 0.118″ CW × 0.791″ Length × 0.0079″ Corner Radius ; Neutral ; Carbide ; TiCN+Al2O3+TiN ; IC5400

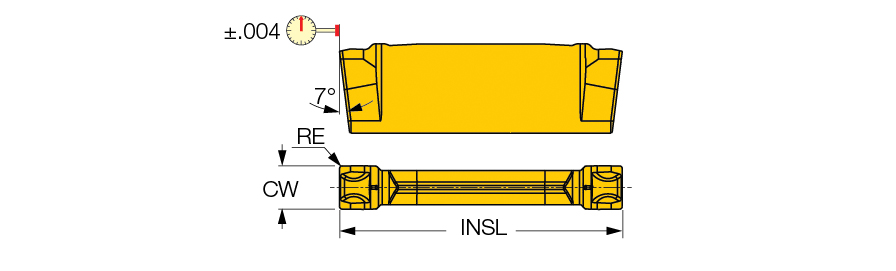

| Cutting Width (CW) | 0.118″ | Application | | Ext. Grooving | Face Grooving | Face Grooving Along Shaft | Int. Face Grooving | Parting | |
| Corner Radius (RE) | 0.0079″ | Applicable Material | | Steel | Stainless Steel | |
| Overall Length (OAL) | 0.791″ | Max. Grooving Feed (fg(max)) | 0.0071 ″/rev |
| Insert Length (INSL) | 0.791″ | Min. Grooving Feed (fg(min)) | 0.0024 ″/rev |
| Cutting Depth Maximum (CDX) | 0.709″ | Tool Type | Parting & Grooving Inserts |
| Cutting Edge Material | Carbide | Angle | 12 Degrees |
| Coating | TiCN+Al2O3+TiN | Measurement Type | Inch |
| Grade | IC5400 | Body Material | Carbide |
| Shape | 90° Rectangular | Cutting Width Tolerance (+/-) (CWTOL) | 0.00157″ |
| Cutting Direction (HAND) | Neutral | Insert Width (W1) | 0.094″ |
Product Features
| Family Description | Double-sided inserts with a positive rake inclination, single cavity and negative land, for hard and soft materials, stainless steel, bearing steel and high temp alloys. | Country of Origin | Israel |
Shipping Info
Package Length
3.56000
Package Width
1.32000
Package Height
.24000
Package Weight
0.011
