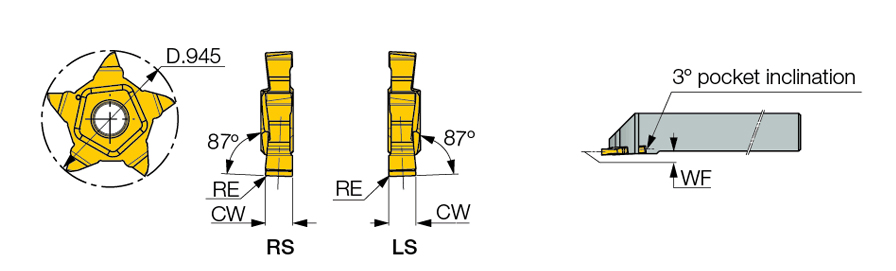

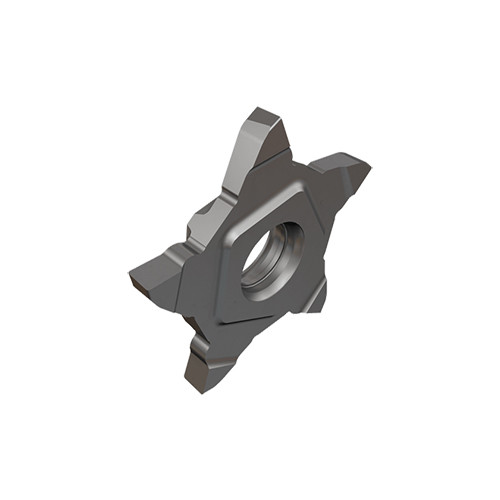

PENTA 24N157NF079LS IC908
Parting Off Insert; 0.062″ CW × 0.0311″ Corner Radius ; Left Hand ; Carbide ; TiAlN ; IC908
| Cutting Width (CW) | 0.062″ | Max. Grooving Feed (fg(max)) | 0.0031 ″/rev |
| Corner Radius (RE) | 0.0311″ | Min. Grooving Feed (fg(min)) | 0.0012 ″/rev |
| Cutting Depth Maximum (CDX) | 0.118″ | Chip Breaker Type | K |
| Cutting Edge Material | Carbide | Tool Type | Parting & Grooving Inserts |
| Coating | TiAlN | Angle | 12 Degrees |
| Grade | IC908 | Measurement Type | Inch |
| Shape | 108° Pentagonal | Functional Width (WF) | 0.047″ |
| Cutting Direction (HAND) | Left Hand | Body Material | Carbide |
| Application | | Ext. Grooving | Ext. Grooving & Turning | Parting | | Cutting Width Tolerance (+/-) (CWTOL) | 0.00078″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Insert Width (W1) | 0.148″ |
Product Features
| Family Description | Parting and precision grooving pentagonal inserts. Used for next to high shoulder applications. | Country of Origin | Israel |
| Remarks | For parting and grooving range, click on More Info. |
Shipping Info
Package Weight
0.023
