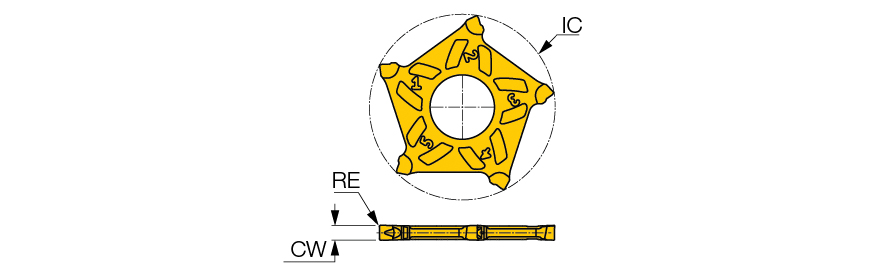

| Cutting Width (CW) | 0.118″ | Max. Grooving Feed (fg(max)) | 0.0063 ″/rev |
| Corner Radius (RE) | 0.0079″ | Min. Grooving Feed (fg(min)) | 0.0016 ″/rev |
| Corner Radius Tolerance (+/-) (RETOL) | 0.0012″ | Chip Breaker Type | J |
| Cutting Edge Material | Carbide | Tool Type | Parting & Grooving Inserts |
| Coating | TiAlN+AlTiN+TiN | Angle | 12 Degrees |
| Grade | IC808G | Measurement Type | Inch |
| Cutting Direction (HAND) | Neutral | Body Material | Carbide |
| Application | | Ext. Grooving | Parting | | Cutting Width Tolerance (+/-) (CWTOL) | 0.00078″ |
| Applicable Material | | Steel | Stainless Steel | Hard Materials | Super-Alloys / Titanium | |
Product Features

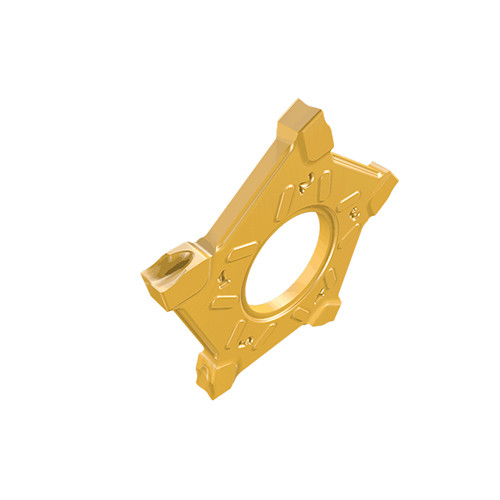

| Family Description | Parting and precision grooving insert on soft parts, minimizes burr size. Most economical system with 5 cutting edges. | Country of Origin | Israel |
Shipping Info
Package Weight
0.020
