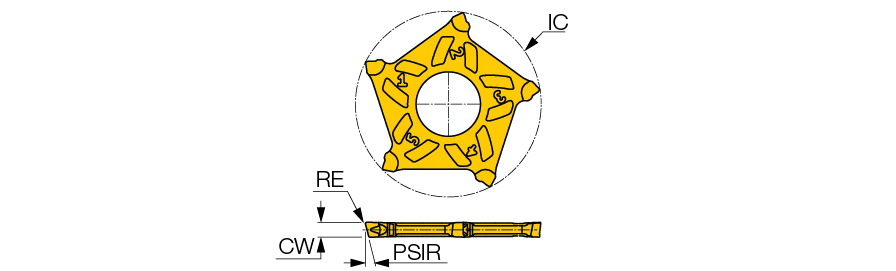

| Cutting Width (CW) | 0.118″ | Applicable Material | | Steel | Stainless Steel | Hard Materials | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.0079″ | Max. Grooving Feed (fg(max)) | 0.0039 ″/rev |
| Corner Radius Tolerance (+/-) (RETOL) | 0″ | Min. Grooving Feed (fg(min)) | 0.0016 ″/rev |
| Cutting Edge Material | Carbide | Tool Type | Parting & Grooving Inserts |
| Coating | TiAlN+AlTiN+TiN | Angle | 12 Degrees |
| Grade | IC808G | Measurement Type | Inch |
| Cutting Direction (HAND) | Left Hand | Body Material | Carbide |
| Application | | Parting | |

Product Features

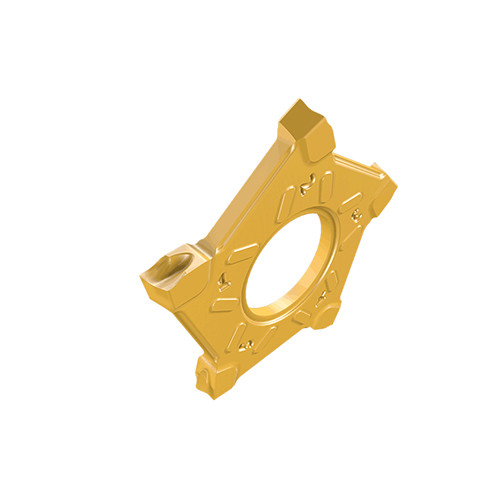

| Family Description | Insert with 5 cutting edges, for parting of tubes, small and thin-walled parts. Most economical system available. | Country of Origin | Israel |
Shipping Info
Package Weight
0.020
