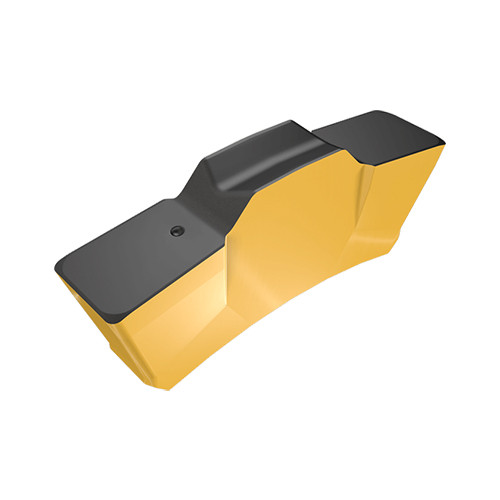

TGMA 304K IC5010

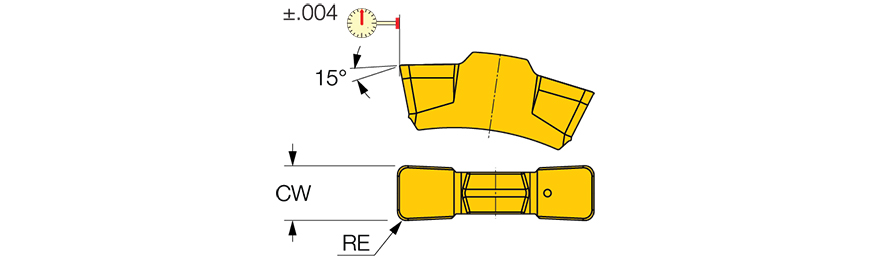

| Cutting Width (CW) | 0.118″ | Application | | Ext. Grooving | Ext. Grooving & Turning | Int. Groove & Turn | Int. Grooving | |
| Corner Radius (RE) | 0.016″ | Applicable Material | | Cast Iron | |
| Corner Radius Tolerance (+/-) (RETOL) | 0.002″ | Max. Grooving Feed (fg(max)) | 0.0051 ″/rev |
| Overall Length (OAL) | 0.531″ | Min. Grooving Feed (fg(min)) | 0.0027 ″/rev |
| Insert Length (INSL) | 0.531″ | Insert Rake Angle (GAN) | 15 Degrees |
| Cutting Depth Maximum (CDX) | 0.406″ | Angle | 12 Degrees |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiCN+Al2O3+TiN | Body Material | Carbide |
| Grade | IC5010 | Cutting Width Tolerance (+/-) (CWTOL) | 0.00196″ |
Product Features
| Family Description | Utility double-ended inserts for external and internal grooving and turning of cast iron. | Country of Origin | Israel |
Shipping Info
Package Weight
0.007
