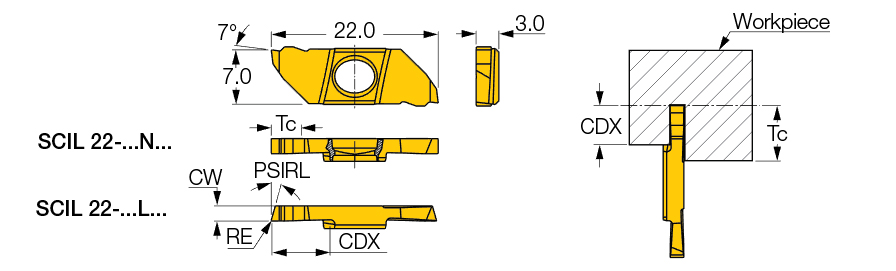

SCIR 22-100N-00 IC1007
Parting Off Insert; 1 mm CW × 22 mm Length × 7 mm Thickness × 0 mm Corner Radius ; Right Hand ; Carbide ; TiAlN ; IC1007
| Cutting Width (CW) | 1 mm | Application | | Ext. Grooving | Parting | |
| Corner Radius (RE) | 0 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Corner Radius Tolerance (+/-) (RETOL) | 0.03 mm | Max. Grooving Feed (fg(max)) | 0.05 mm/rev |
| Insert Thickness (S) | 7 mm | Min. Grooving Feed (fg(min)) | 0.03 mm/rev |
| Insert Length (INSL) | 22 mm | Insert Rake Angle (GAN) | 7 Degrees |
| Cutting Depth Maximum (CDX) | 4 mm | Tool Type | Groove-Turn Precision Inserts |
| Cutting Edge Material | Carbide | Angle | 12 Degrees |
| Coating | TiAlN | Measurement Type | Metric |
| Grade | IC1007 | Body Material | Carbide |
| Cutting Direction (HAND) | Right Hand | Cutting Edge Angle Major Right Hand (PSIRR) | 0 Degrees |
Product Features

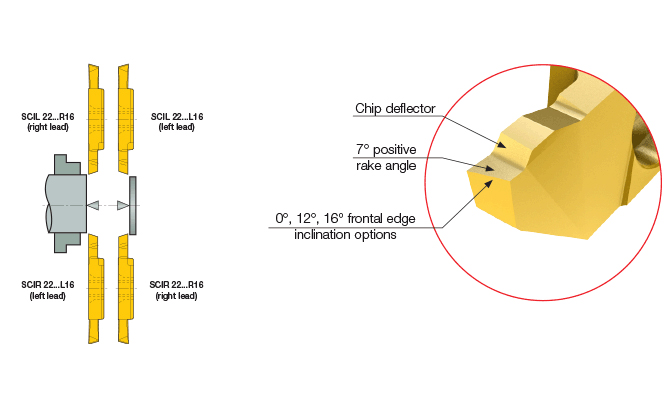

| Family Description | Grooving and parting inserts with parallel and frontal lead angle for reduced burr remaining on the workpiece. Used on Swiss type automatics and small CNC lathes. | Country of Origin | Israel |
Shipping Info
Package Weight
0.014
