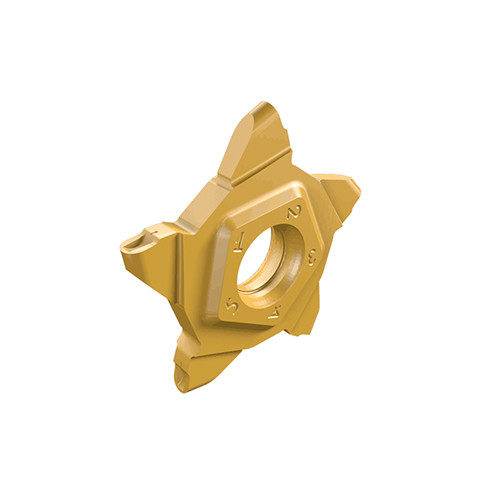

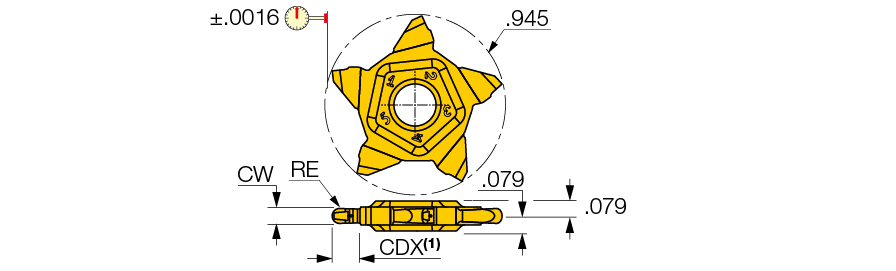

PENTA 24N157C079 IC908
Parting Off Insert; 0.062″ CW × 0.0311″ Corner Radius ; Carbide ; TiAlN ; IC908
| Cutting Width (CW) | 0.062″ | Max. Grooving Feed (fg(max)) | 0.0047 ″/rev |
| Corner Radius (RE) | 0.0311″ | Min. Grooving Feed (fg(min)) | 0.0016 ″/rev |
| Corner Radius Tolerance (+/-) (RETOL) | 0.0039″ | Chip Breaker Type | C |
| Cutting Depth Maximum (CDX) | 0.118″ | Tool Type | Parting & Grooving Inserts |
| Cutting Edge Material | Carbide | Angle | 12 Degrees |
| Coating | TiAlN | Measurement Type | Inch |
| Grade | IC908 | Body Material | Carbide |
| Application | | Ext. Grooving | Ext. Grooving & Turning | | Cutting Width Tolerance (+/-) (CWTOL) | 0.00078″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Insert Width (W1) | 0.157″ |
Product Features
| Family Description | Full radius grooving inserts with 5 cutting edges. First choice for grooving hard materials and tough applications. A positive rake, single cavity, negative land and shoulders, provides extra cutting-edge strength. | Country of Origin | Israel |
| Remarks | Recessing is possible only with .094 and wider inserts For parting and grooving range, click on More Info |
Shipping Info
Package Weight
0.023
