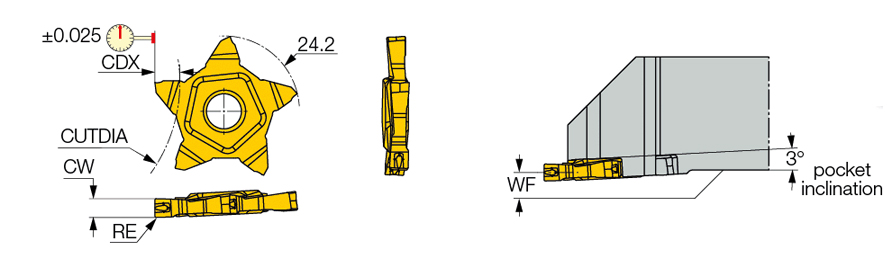

PENTA 24N157J079RS IC908
Parting Off Insert; 0.062″ CW × 0.0311″ Corner Radius ; Right Hand ; Carbide ; TiAlN ; IC908
| Corner Radius (RE) | 0.79 mm | Max. Grooving Feed (fg(max)) | 0.12 mm/rev |
| Cutting Depth Maximum (CDX) | 3 mm | Min. Grooving Feed (fg(min)) | 0.04 mm/rev |
| Cutting Edge Material | Carbide | Chip Breaker Type | J |
| Coating | TiAlN | Tool Type | Parting & Grooving Inserts |
| Grade | IC908 | Angle | 12 Degrees |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Metric |
| Application | | Ext. Grooving | Parting | | Functional Width (WF) | 1.2 mm |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Body Material | Carbide |
Product Features
| Family Description | Parting and precision grooving pentagonal inserts, for next to high shoulder applications.tions. | Country of Origin | Israel |
Shipping Info
Package Weight
0.022
