TAG N4HF IC808

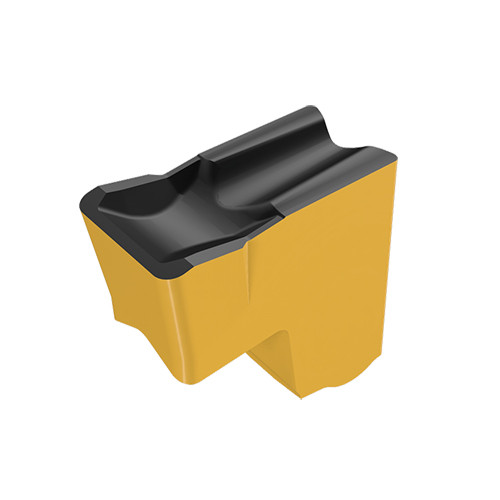

Parting Off Insert; 0.157″ CW × 0.0197″ Corner Radius ; Carbide ; TiAlN+AlTiN+TiN ; IC808

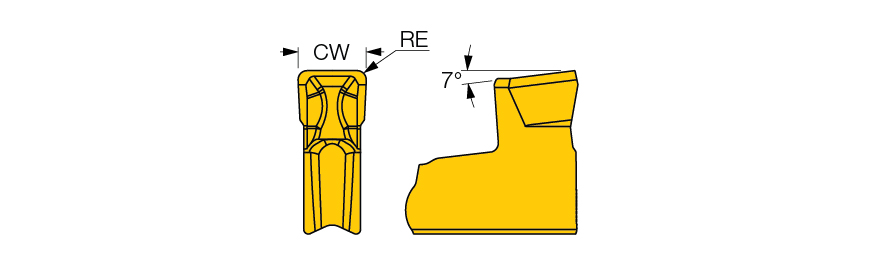

| Cutting Width (CW) | 0.157″ | Min. Grooving Feed (fg(min)) | 0.0118 ″/rev |
| Corner Radius (RE) | 0.0197″ | Chip Breaker Type | HF |
| Cutting Edge Material | Carbide | Angle | 12 Degrees |
| Coating | TiAlN+AlTiN+TiN | Measurement Type | Inch |
| Grade | IC808 | Body Material | Carbide |
| Application | | Ext. Grooving | Parting | Side Slotting | Slitting | T Slotting | Y Axis Parting & grooving | | Cutting Width Tolerance (+/-) (CWTOL) | 0.00157″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Insert Width (W1) | 0.138″ |
| Max. Grooving Feed (fg(max)) | 0.0157 ″/rev |
Product Features
| Family Description | TAG N-HF Reinforced cutting edge and bigger corner radius designed for extremely high feeds, suitable for steel and alloy steel. | Country of Origin | Israel |
Shipping Info
Package Weight
0.007
