GFT 1.6C-0.16 IC1028

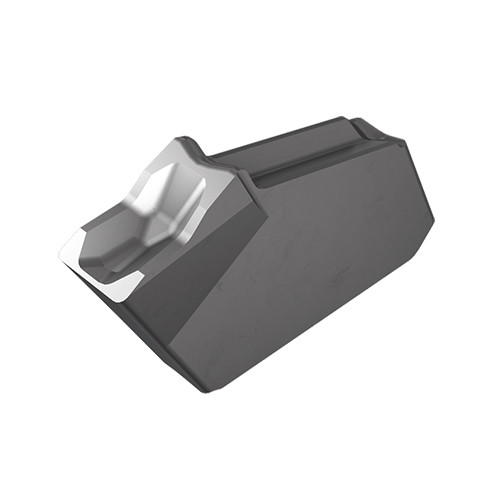

Parting Off Insert; 1.6 mm CW × 0.16 mm Corner Radius ; Carbide ; TiAlN+TiN ; IC1028

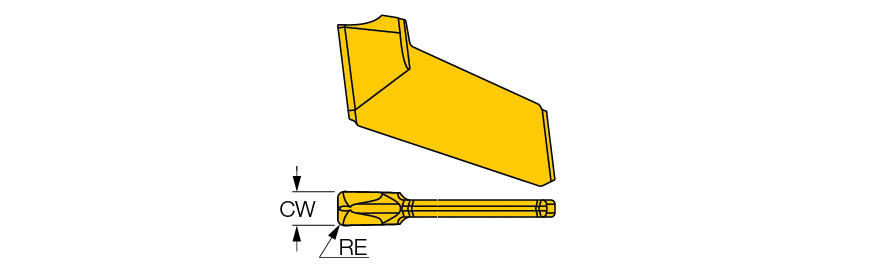

| Cutting Width (CW) | 1.6 mm | Max. Grooving Feed (fg(max)) | 0.15 mm/rev |
| Corner Radius (RE) | 0.16 mm | Min. Grooving Feed (fg(min)) | 0.05 mm/rev |
| Cutting Edge Material | Carbide | Chip Breaker Type | C |
| Coating | TiAlN+TiN | Tool Type | HSK |
| Grade | IC1028 | Angle | 12 Degrees |
| Application | | Ext. Grooving | Parting | Side Slotting | Slitting | | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | | Body Material | Carbide |
Product Features
| Family Description | Thin Parting, Grooving & Slitting single-ended inserts for soft materials. Cutting edge with a positive rake, used at low-to-medium feeds. | Country of Origin | Israel |
Shipping Info
Package Weight
0.004
