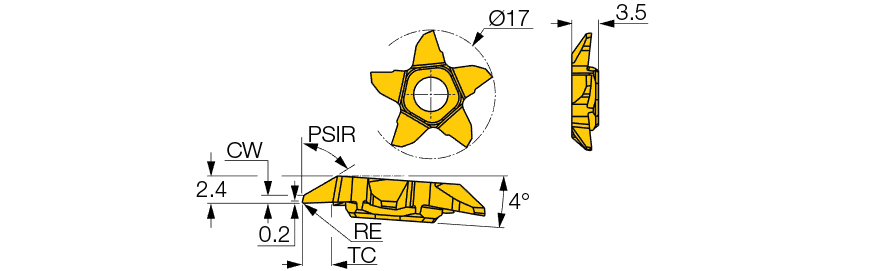

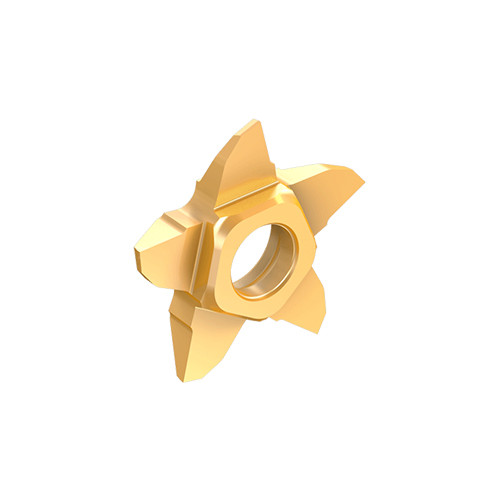

PENTA 17EL00-07K0LS IC1008
Parting Off Insert; 0.7 mm CW × 0 mm Corner Radius ; Carbide ; TiAlN+TiN ; IC1008
| Cutting Width (CW) | 0.7 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0 mm | Angle | 12 Degrees |
| Cutting Edge Material | Carbide | Work Piece Parting Diameter Maximum (CUTDIA) | 32 mm |
| Coating | TiAlN+TiN | Measurement Type | Metric |
| Grade | IC1008 | Functional Width (WF) | 2.4 mm |
| Application | | Ext. Back Turning | | Body Material | Carbide |
Product Features
| Family Description | Back turning pentagonal inserts with a flat top rake for short chipping materials, used on Swiss type automatics and small CNC lathes. | Country of Origin | Israel |
| Remarks | For parting and grooving range, click on "More Info". |
Shipping Info
Package Weight
0.009
