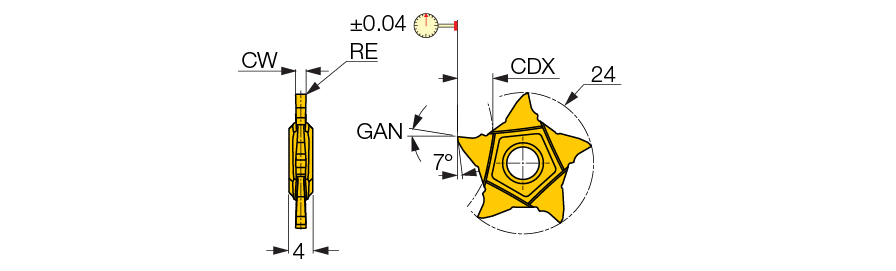

PENTA 24N095PF005 IC30N
Parting Off Insert; 0.95 mm CW × 0.05 mm Corner Radius ; Neutral ; Cermet ; Uncoated ; IC30N
| Cutting Width (CW) | 0.95 mm | Applicable Material | | Steel | Stainless Steel | Hard Materials | |
| Corner Radius (RE) | 0.05 mm | Max. Grooving Feed (fg(max)) | 0.05 mm/rev |
| Corner Radius Tolerance (+/-) (RETOL) | 0.02 mm | Min. Grooving Feed (fg(min)) | 0.02 mm/rev |
| Cutting Depth Maximum (CDX) | 4 mm | Insert Rake Angle (GAN) | 6 Degrees |
| Cutting Edge Material | Cermet | Chip Breaker Type | PF |
| Coating | Uncoated | Tool Type | Parting & Grooving Inserts |
| Grade | IC30N | Angle | 12 Degrees |
| Cutting Direction (HAND) | Neutral | Measurement Type | Metric |
| Application | | Ext. Grooving | Ext. Grooving & Turning | Parting | | Body Material | Carbide |
Product Features
| Family Description | Parting and precision grooving inserts for soft and small parts. High positive rake, P-type has more positive rake, smaller radii and no edge honing vs. the PF-type. Most economical system with 5 cutting edges. | Country of Origin | Israel |

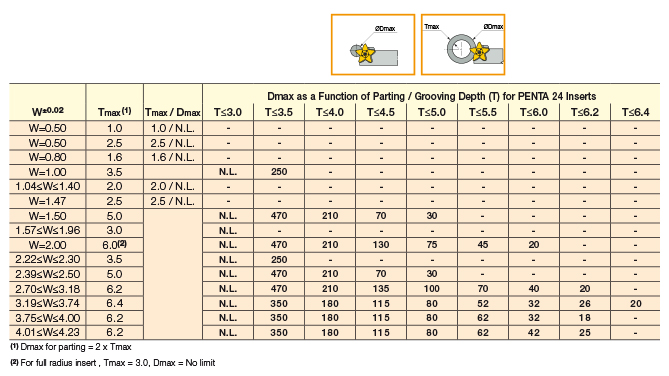

| Remarks | For parting and grooving range, click on "More Info". |
Shipping Info
Package Weight
0.012
