BGM L1001J-6D IC1008
Parting Off Insert; 0.039″ CW × 1.524″ Length × 0.0039″ Corner Radius ; Carbide ; TiAlN+TiN ; IC1008

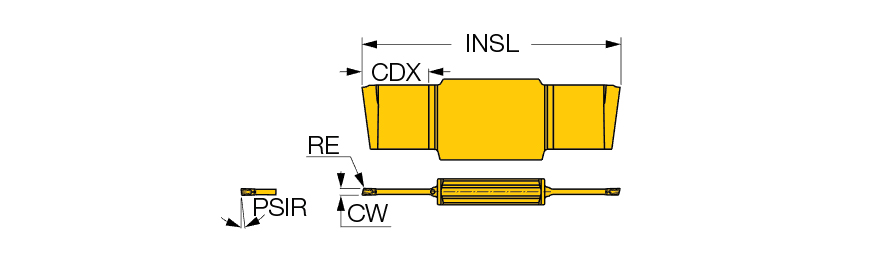

| Cutting Width (CW) | 0.039″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.0039″ | Max. Grooving Feed (fg(max)) | 0.0031 ″/rev |
| Insert Length (INSL) | 1.524″ | Min. Grooving Feed (fg(min)) | 0.0008 ″/rev |
| Cutting Depth Maximum (CDX) | 0.394″ | Chip Breaker Type | J |
| Cutting Edge Material | Carbide | Angle | 12 Degrees |
| Coating | TiAlN+TiN | Measurement Type | Inch |
| Grade | IC1008 | Body Material | Carbide |
| Application | | Parting | |
Product Features
| Family Description | Narrow, material cost saving inserts for parting of soft materials, tubes, small diameters and thin-walled parts. | Country of Origin | Israel |
Shipping Info
Package Weight
0.041
