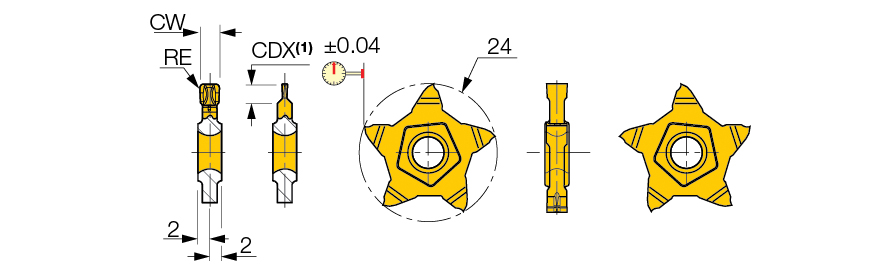

PENTA 24N500C040 IC908
Parting Off Insert; 5 mm CW × 0.4 mm Corner Radius ; Neutral ; Carbide ; TiAlN ; IC908
| Cutting Width (CW) | 5 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.4 mm | Max. Grooving Feed (fg(max)) | 0.25 mm/rev |
| Corner Radius Tolerance (+/-) (RETOL) | 0.05 mm | Min. Grooving Feed (fg(min)) | 0.1 mm/rev |
| Cutting Depth Maximum (CDX) | 6.2 mm | Chip Breaker Type | C |
| Cutting Edge Material | Carbide | Tool Type | Parting & Grooving Inserts |
| Coating | TiAlN | Angle | 12 Degrees |
| Grade | IC908 | Measurement Type | Metric |
| Cutting Direction (HAND) | Neutral | Body Material | Carbide |
| Application | | Ext. Grooving | Ext. Grooving & Turning | Parting | |
Product Features
| Family Description | Parting and precision grooving insert with 5 cutting edges. First choice for the parting of bars, hard materials and tough applications. A positive rake, single cavity, negative land and shoulders, provides extra cutting-edge strength. | Country of Origin | Israel |
| Remarks | Recessing is possible only with 2.39 mm and wider inserts For parting and grooving range, click on "More Info". |
Shipping Info
Package Weight
0.125
