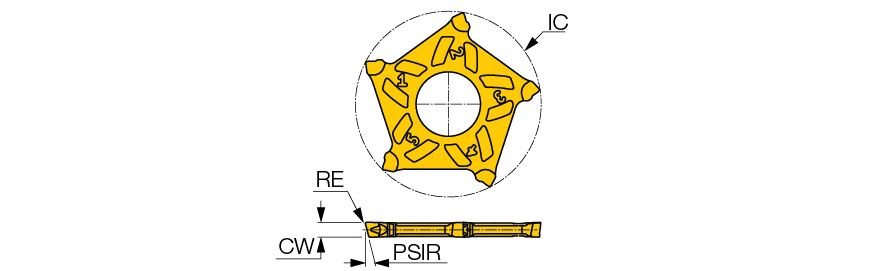

PENTA D22R300J-15D IC808G
Parting Off Insert; 3 mm CW × 0.2 mm Corner Radius ; Right Hand ; Carbide ; TiAlN+AlTiN+TiN ; IC808G
| Cutting Width (CW) | 3 mm | Max. Grooving Feed (fg(max)) | 0.1 mm/rev |
| Corner Radius (RE) | 0.2 mm | Min. Grooving Feed (fg(min)) | 0.04 mm/rev |
| Cutting Edge Material | Carbide | Tool Type | Parting & Grooving Inserts |
| Coating | TiAlN+AlTiN+TiN | Angle | 12 Degrees |
| Grade | IC808G | Measurement Type | Metric |
| Cutting Direction (HAND) | Right Hand | Body Material | Carbide |
| Application | | Parting | | Cutting Edge Angle Major Right Hand (PSIRR) | 15 Degrees |
| Applicable Material | | Steel | Stainless Steel | Hard Materials | Super-Alloys / Titanium | |
Product Features
| Family Description | Insert with 5 cutting edges, for parting of tubes, small and thin-walled parts. Most economical system available. | Country of Origin | Israel |
Shipping Info
Package Weight
0.017
