15U1G-2002281R01

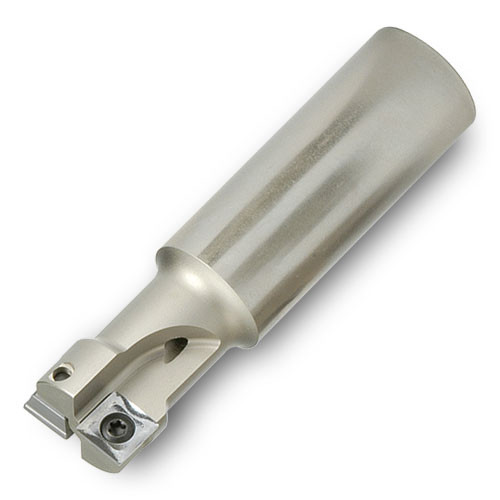

Indexable End Mill; 2″ Dia. × 0.41″ LOC × 1-1/4″ Shank Dia. × 4-1/2″ OAL × 2-1/4″ LU ; 90 Degrees
| Cutting Diameter (DC/DCX) | 2″ | Usable Length (LU) | 2-1/4″ |
| Cutting Diameter (DC) | 2″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 4 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 0.41″ | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 4-1/2″ | Measurement Type | Inch |
| Ramping Angle Maximum (RMPX) | 1 Degrees | Body Material | Steel |
| Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | | Protruding Length (LPR) | 2-1/4″ |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Weight of Item (WT) | 0.73 Kg |
Product Features
| Family Description | 15-32 Ra surface finishes when engaging wiper (WEP) Insert corners: .008″ .020″ .031″ .062″ .093″, .125″ R | Country of Origin | Usa |
Shipping Info
Package Weight
0.003
