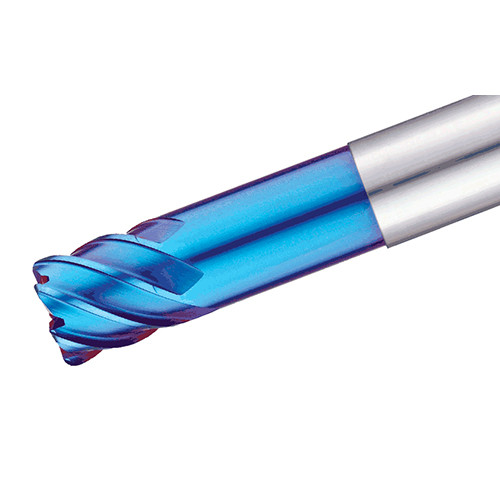

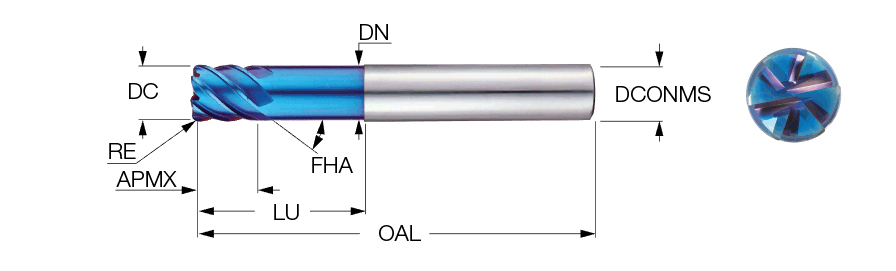

EC-B6 10-22C10R.5H100 IC702
SQ End Mill; 10 mm Dia. × 22 mm LOC × 10 mm Shank Dia. × 100 mm OAL ; 0.5 mm RE ; 6 FL ; Carbide ; AlTiCrSiN
| Cutting Diameter (DC) | 10 mm | Ramping Angle Maximum (RMPX) | 0 Degrees |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Grade | IC702 |
| Depth of Cut Maximum (APMX) | 22 mm | Neck Diameter (DN) | 9.7 mm |
| Overall Length (OAL) | 100 mm | Body Half Taper Angle (BHTA) | 15 Degrees |
| Cutting Edge Material | Carbide | Tool Type | Solid carbide non center cutting endmills 90° |
| Coating | AlTiCrSiN | Maximum Feed per Tooth (fz(max)) | 0.1 mm/tooth |
| Flute Count (NOF) | 6 | Minimum Feed per Tooth (fz(min)) | 0.03 mm/tooth |
| Flute Helix Angle (FHA) | 45 Degrees | Coolant Supply Property (CSP) | External |
| Shank Type | Round | Body Material | Carbide |
| End Shape | Corner Radius | Measurement Type | Metric |
| Applicable Material | | Steel | Hard Materials | | Connection Code Machine Side (CCMS) | Cylindrical |
| Application | | Shouldering | Slotting | | Cutting Diameter Tolerance | e8 |
| Corner Radius (RE) | 0.5 mm | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Family Description | 6 flute, 45° helix extra long solid carbide endmills. Used for finishing hard materials up to 65 HRC. | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.246
