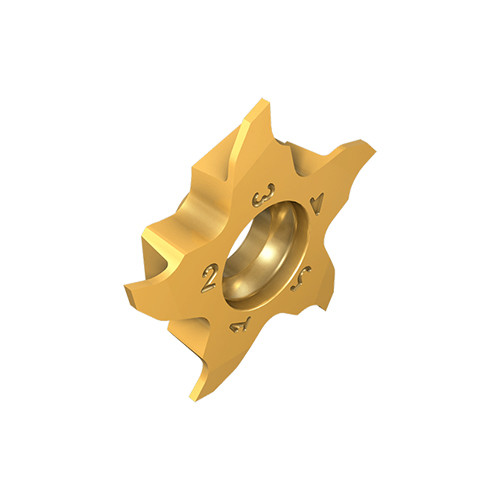

PENTA 17R03SP6D-RS IC1007
Parting Off Insert; 0.012″ CW × 0″ Corner Radius ; Carbide ; TiAlN ; IC1007

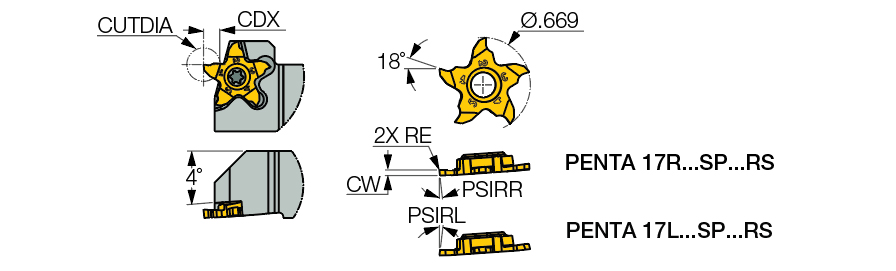

| Cutting Width (CW) | 0.012″ | Max. Grooving Feed (fg(max)) | 0.0012 ″/rev |
| Corner Radius (RE) | 0″ | Min. Grooving Feed (fg(min)) | 0.0008 ″/rev |
| Cutting Depth Maximum (CDX) | 0.024″ | Angle | 12 Degrees |
| Cutting Edge Material | Carbide | Work Piece Parting Diameter Maximum (CUTDIA) | 0.047″ |
| Coating | TiAlN | Measurement Type | Inch |
| Grade | IC1007 | Body Material | Carbide |
| Application | | Ext. Grooving | Parting | | Cutting Edge Angle Major Right Hand (PSIRR) | 6 Degrees |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |

Product Features
| Family Description | Pentagonal inserts (5 edges) for parting miniature parts, high positive rake inclination and sharp cutting edge. low cutting forces, easy chip breaking. Used on soft materials, thin parts | Country of Origin | Israel |
Shipping Info
Package Weight
0.091
