47C-501078RM02 IN2005

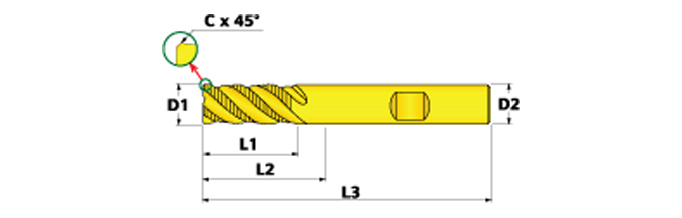

SQ End Mill; 1/2″ Dia. × 1″ LOC × 1/2″ Shank Dia. × 3-1/2″ OAL ; 4 FL ; TiAlN
| Cutting Diameter (DC) | 1/2″ | Usable Length (LU) | 1.669″ |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Non Ferrous Metals | Hi Temp Alloys | |
| Depth of Cut Maximum (APMX) | 1″ | Application | Countersinking | Helical Interpolation | Rampdown | Shouldering | Slotting |
| Overall Length (OAL) | 3-1/2″ | Grade | IN2005 |
| Cutting Edge Material | Carbide | Tool Type | Center Cut |
| Coating | TiAlN | Body Material | Steel |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.5″ |
| Flute Helix Angle (FHA) | 30 Degrees | Measurement Type | Inch |
| End Shape | Square | Corner Radius (RE) / Chamfer Width (CHW) | 0.020 Chamfer |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Weight
0.48
