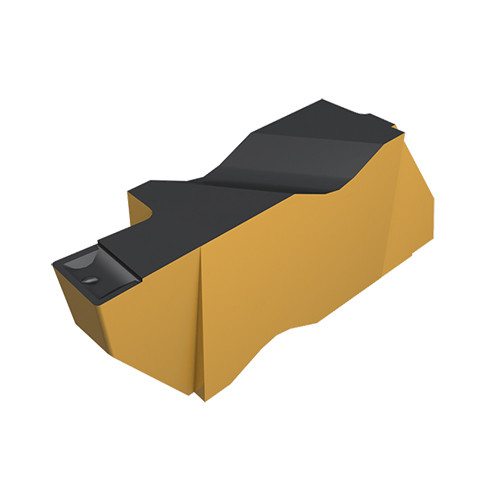

ING3047LCB IC907
Parting Off Insert; 0.047″ CW × 0.89″ Length × 0.344″ Thickness × 0.0075″ Corner Radius ; Carbide ; TiAlN ; IC907

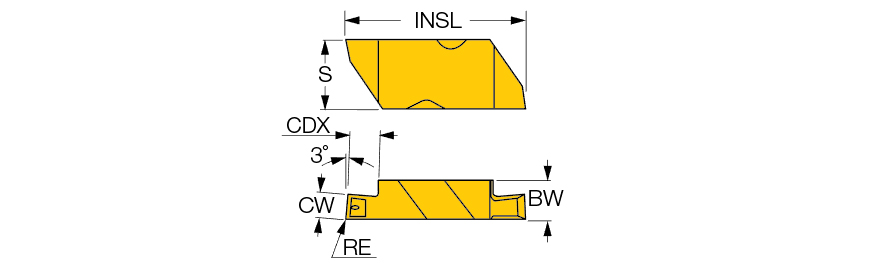

| Cutting Width (CW) | 0.047″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.0075″ | Max. Grooving Feed (fg(max)) | 0.0024 ″/rev |
| Insert Thickness (S) | 0.344″ | Min. Grooving Feed (fg(min)) | 0.0016 ″/rev |
| Insert Length (INSL) | 0.89″ | Tool Type | Groove-Turn Precision Inserts |
| Cutting Depth Maximum (CDX) | 0.075″ | Angle | 12 Degrees |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Grade | IC907 | Cutting Width Tolerance (+/-) (CWTOL) | 0.00098″ |
| Application | | Ext. Grooving | Int. Grooving | | Insert Width (W1) | 0.195″ |
Product Features
| Family Description | Double-ended precision grooving inserts with a chipformer. | Country of Origin | USA |
| Remarks | DMIN according to related boring bar. |
Shipping Info
Package Weight
0.029
