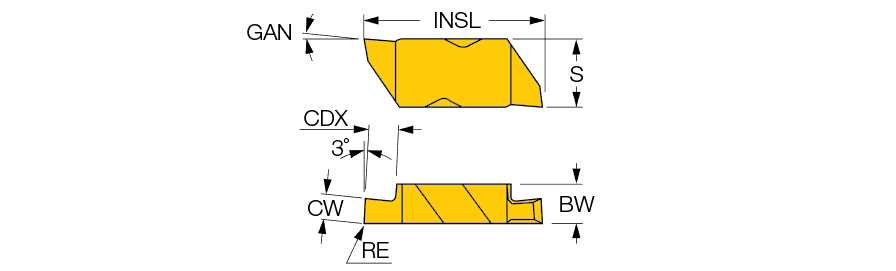

ING2041L IC907
Parting Off Insert; 0.041″ CW × 0.514″ Length × 0.219″ Thickness × 0.0035″ Corner Radius ; Left Hand ; Carbide ; TiAlN ; IC907
| Cutting Width (CW) | 0.041″ | Application | | Ext. Grooving | Int. Grooving | |
| Corner Radius (RE) | 0.0035″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Corner Radius Tolerance (+/-) (RETOL) | 0.0012″ | Max. Grooving Feed (fg(max)) | 0.002 ″/rev |
| Insert Thickness (S) | 0.219″ | Min. Grooving Feed (fg(min)) | 0.0012 ″/rev |
| Overall Length (OAL) | 0.514″ | Insert Rake Angle (GAN) | 0 Degrees |
| Insert Length (INSL) | 0.514″ | Tool Type | Groove-Turn Precision Inserts |
| Cutting Depth Maximum (CDX) | 0.05″ | Angle | 12 Degrees |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Grade | IC907 | Cutting Width Tolerance (+/-) (CWTOL) | 0.001″ |
| Cutting Direction (HAND) | Left Hand | Insert Width (W1) | 0.15″ |
Product Features
| Family Description | Precision double-ended flat top grooving inserts. | Country of Origin | USA |
| Remarks | DMIN according to related boring bar |
Shipping Info
Package Weight
0.008
