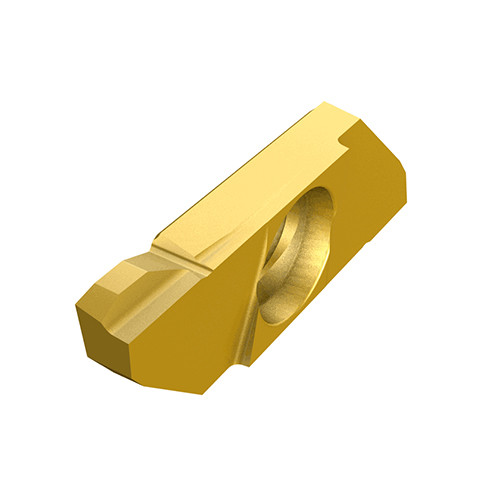

SCIL 22-AL00-25K16 IC07

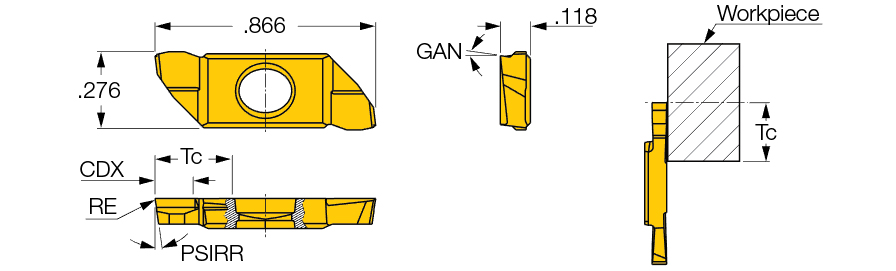

Parting Off Insert; SCIL 22-AL00-25K16 IC07 × 0.866″ Length × 0.276″ Thickness × 0″ Corner Radius ; Left Hand ; Carbide ; Uncoated
| Corner Radius (RE) | 0″ | Cutting Direction (HAND) | Left Hand |
| Corner Radius Tolerance (+/-) (RETOL) | 0.0008″ | Application | | Ext. Turning | |
| Insert Thickness (S) | 0.276″ | Applicable Material | | Stainless Steel | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |

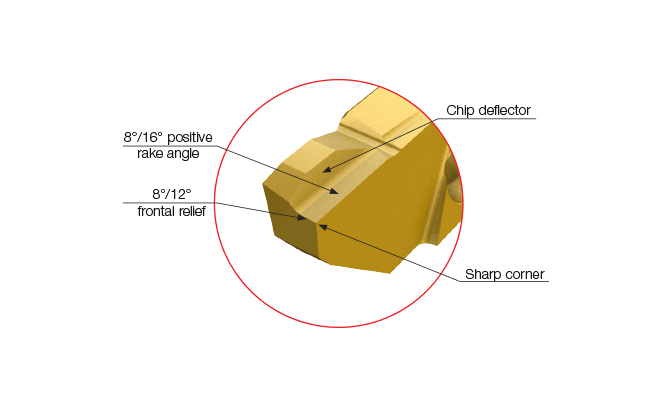

| Overall Length (OAL) | 0.866″ | Insert Rake Angle (GAN) | 16 Degrees |
| Insert Length (INSL) | 0.866″ | Tool Type | Groove-Turn Precision Inserts |
| Cutting Depth Maximum (CDX) | 0.15″ | Angle | 12 Degrees |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | Uncoated | Body Material | Carbide |
| Grade | IC07 | Insert Width (W1) | 0.118″ |
Product Features
| Family Description | Turning inserts with a front relief angle used on Swiss type automatics and small CNC lathes. | Country of Origin | Israel |
Shipping Info
Package Weight
0.016
