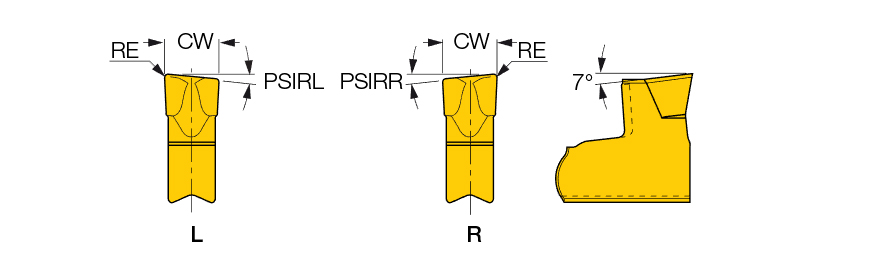

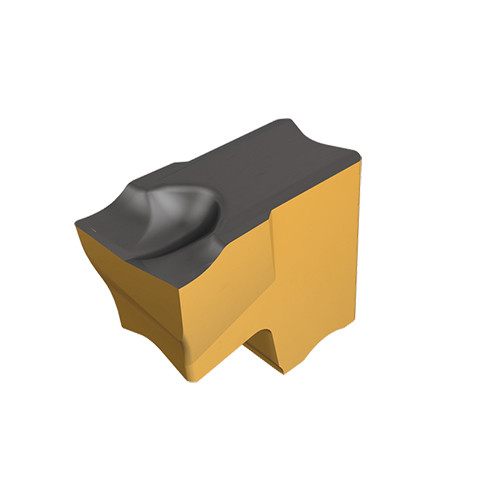

TAG R4J-4D IC830
Parting Off Insert; 0.157″ CW × 0.0094″ Corner Radius ; Right Hand ; Carbide ; AlTiN+TiN ; IC830
| Cutting Width (CW) | 0.157″ | Max. Grooving Feed (fg(max)) | 0.0059 ″/rev |
| Corner Radius (RE) | 0.0094″ | Min. Grooving Feed (fg(min)) | 0.0016 ″/rev |
| Cutting Edge Material | Carbide | Chip Breaker Type | J |
| Coating | AlTiN+TiN | Tool Type | Parting & Grooving Inserts |
| Grade | IC830 | Angle | 12 Degrees |
| Shape | 90° Rectangular | Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand | Body Material | Carbide |
| Application | | Parting | Y Axis Parting & grooving | | Cutting Edge Angle Major Right Hand (PSIRR) | 4 Degrees |
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
Product Features
| Family Description | First choice for soft materials, alloy steel and austenitic stainless steel. Parting of tubes, small diameters and thin-walled parts. Cutting edge with positive rake used at low-to-medium feeds. The JS-type has sharp corners. | Country of Origin | Israel |
Shipping Info
Package Weight
0.007
