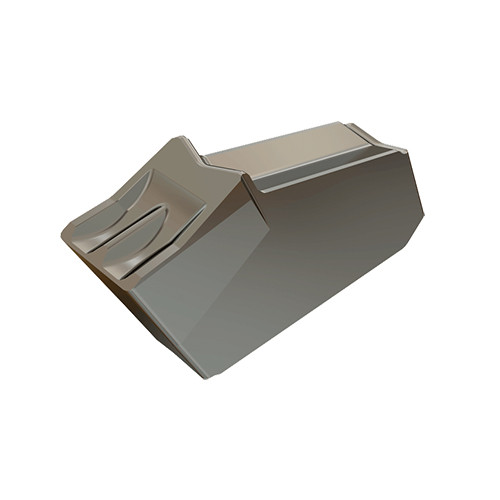

GFN 12W IC328
Parting Off Insert; 1/2″ CW × 0.033″ Corner Radius ; Neutral ; Carbide ; TiCN ; IC328

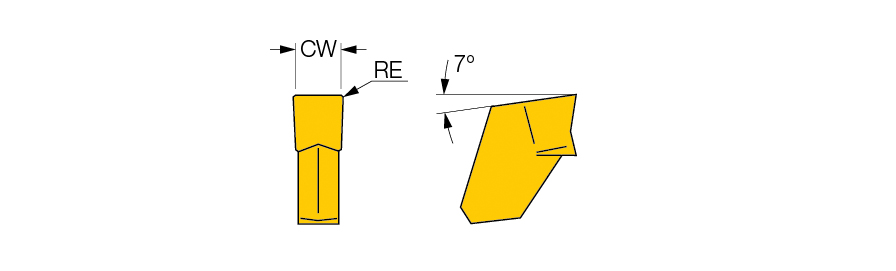

| Cutting Width (CW) | 1/2″ | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.033″ | Max. Grooving Feed (fg(max)) | 0.0315 ″/rev |
| Corner Radius Tolerance (+/-) (RETOL) | 0.002″ | Min. Grooving Feed (fg(min)) | 0.0118 ″/rev |
| Cutting Edge Material | Carbide | Chip Breaker Type | W |
| Coating | TiCN | Tool Type | Parting & Grooving Inserts |
| Grade | IC328 | Angle | 12 Degrees |
| Shape | 90° Rectangular | Measurement Type | Inch |
| Cutting Direction (HAND) | Neutral | Body Material | Carbide |
| Application | | Ext. Grooving | Int. Grooving | Parting | | Cutting Width Tolerance (+/-) (CWTOL) | 0.00393″ |
Product Features
| Family Description | Parting & grooving single-sided insert. W-type chipformer, with a central ridge that forms double cavities on the rake face. Most efficient on alloy steel. | Country of Origin | Israel |
Shipping Info
Package Weight
0.066
