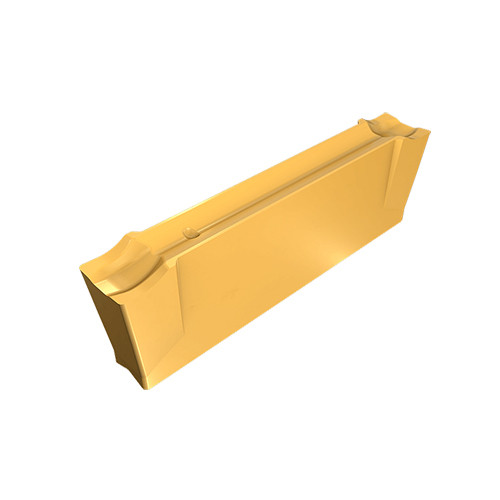

DGN 2202LF IC908
Parting Off Insert; 0.087″ CW × 0.78″ Length × 0.0079″ Corner Radius ; Neutral ; Carbide ; TiAlN ; IC908

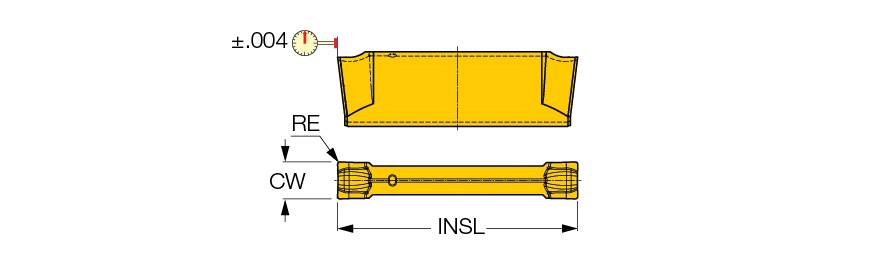

| Cutting Width (CW) | 0.087″ | Cutting Direction (HAND) | Neutral |
| Corner Radius (RE) | 0.0079″ | Application | | Ext. Grooving | Face Grooving | Face Grooving Along Shaft | Int. Face Grooving | Parting | |
| Corner Radius Tolerance (+/-) (RETOL) | 0.0008″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Overall Length (OAL) | 0.78″ | Max. Grooving Feed (fg(max)) | 0.0031 ″/rev |
| Insert Length (INSL) | 0.78″ | Min. Grooving Feed (fg(min)) | 0.0012 ″/rev |
| Cutting Depth Maximum (CDX) | 0.709″ | Tool Type | Parting & Grooving Inserts |
| Cutting Edge Material | Carbide | Angle | 12 Degrees |
| Coating | TiAlN | Measurement Type | Inch |
| Grade | IC908 | Body Material | Carbide |
| Shape | 90° Rectangular | Cutting Width Tolerance (+/-) (CWTOL) | 0.00118″ |

Product Features
| Family Description | Double-sided parting and grooving inserts, first choice for stainless steel applications. | Country of Origin | Israel |
| Remarks | The LFT chipformer features basically the same design as the LF chipformer, except that it is reinforced by a T-land to improve its durability in interrupted-cut or on hard materials applications. It can be applied at higher feeds than the LF chipformer |
Shipping Info
Package Weight
0.006
